TS-1000-224B

MEAN WELL
DC/AC преобразователи
развернуть ▼ свернуть ▲
Фотография серии TS-1000

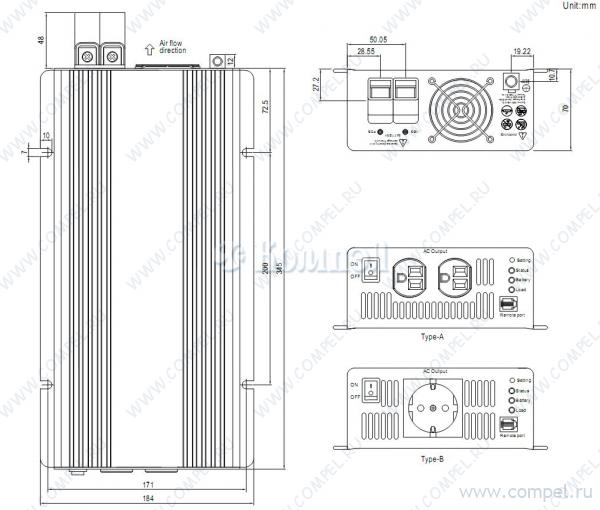

Чертеж серии TS-1000



Технические характеристики

показать свернуть
Выходная мощность
Входное напряжение DC
Выходное напряжение AC
Форма выходного напряжения
Размер 345×184×70 мм
Рабочая температура
  Примечания: Сигнализация о снижении напряжения аккумуляторной батареи, Автоотключение при снижении Uвх, защита от переполюсовки, Защита от короткого замыкания, перегрузки, перенапряжения, перегрева
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i P вых U вх U вых Форма T раб Примечания Карточка
товара
P+ NTS-1200-224EU (MW)

— в коробках 2 шт


Файлы 2

показать свернуть
TS-1000 1000W True Sine Wave DC-AC Power Inverter ■ Features : series User’s Manual True sine wave output (THD<3%) High surge power up to 2000W High efficiency up to 92% Power ON-OFF switch Standby saving mode can be selected Front panel indicator for operation status Built-in fan ON-OFF control function Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input reverse polarity / Overload Application : Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc. 3 years warranty E13 UL458 (for 112/124 type F only) SPECIFICATION TS-1000-112 MODEL NO. TS-1000-124 TS-1000-148 = A, F RATED POWER (Typ.) TS-1000-212 TPTC004 IEC62368-1 (for 212/224/248 only) TS-1000-224 TS-1000-248 = B, C, D 1000W MAXIMUM OUTPUT POWER (Typ.) 1150W for 180 sec. / 1500W for 10 sec. / surge power 2000W for 30 cycles Factory setting set at 110VAC AC VOLTAGE OUTPUT FREQUENCY Note.8 60±0.1Hz WAVEFORM Note.6 True sine wave (THD<3%) 50/60Hz selectable by setting button S.W AC REGULATION (Typ.) ±3.0% SAVING MODE (Typ.) Default disabled. Load≦5W will be changed to standby mode 200 / 220 / 230 / 240VAC selectable by setting button S.W 50±0.1Hz FRONT PANEL INDICATOR Battery voltage level, output load level, saving mode, fault and operation status BAT. VOLTAGE 12V 24V 50/60Hz selectable by setting button S.W 48V 12V 24V 48V 42 ~ 60VDC 25A 10.5 ~ 15VDC 21 ~ 30VDC 42 ~ 60VDC 100A 50A 25A 89% Open & sealed lead acid 90% 90% 91% 92% 40A*4 11.3±4% 40A*2 22.5±4% 20A*2 45±4% 40A*4 11.3±4% 40A*2 22.5±4% 20A*2 45±4% 10.5±4% 21±4% 42±4% 10.5±4% 21±4% 42±4% VOLTAGE RANGE (Typ.)Note.4,6 10.5 ~ 15VDC DC CURRENT (Typ.) 100A INPUT Factory setting set at 230VAC 100 / 110 / 115 / 120VAC selectable by setting button S.W 21 ~ 30VDC 50A NO LOAD DISSIPATION (Typ.) ≦6W @ standby saving mode OFF MODE CURRENT DRAW ≦1mA EFFICIENCY (Typ.) Note.1 88% BATTERY TYPES FUSE BATTERY BAT. LOW ALARM INPUT PROTECTION BAT. LOW SHUTDOWN REVERSE POLARITY By internal fuse open Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode OUTPUT SHORT OUTPUT PROTECTION OVER LOAD (Typ.) Protection type : Shut down o/p voltage, re-power on to recover 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover GFCI PROCTECTION ENVIRONMENT WORKING TEMP. WORKING HUMIDITY Optional (Only type F) SAFETY & ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF OTHERS NOTE None Note.3 0 ~ +40℃ @ 100% load ; +60℃ @ 50% load STORAGE TEMP., HUMIDITY VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE 70℃± 5℃ 90℃± 5℃ OVER TEMPERATURE 20% ~ 90% RH non-condensing -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes IEC62368-1 CB, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1 UL458 (only for "GFCI" receptacle-Type F ), EAC TP TC 004 EAC TP TC 004 Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020 Compliance to FCC class A, EAC TP TC 020 Compliance to EAC TP TC 020 66.9K hrs min. Compliance to BS EN/EN61000-4-2,3,8, EAC TP TC 020 MIL-HDBK-217F (25℃) DIMENSION PACKING 345*184*70mm (L*W*H) 4.3Kg; 2pcs/9.6Kg/1.16CUFT COOLING Loading controlled cooling fan for GFCI receptacle-type F ; Thermostatically controlled cooling fan for others. 1.Efficiency is tested by 750W, linear load at 13V, 26V, 52V input voltage. 2.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting. 3.Output derating capacity referenced by curve 1. 4.Input derating capacity referenced by curve 2. 5.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V 6.THD is tested by 1000W, linear load at 13,26,52V input voltage. 7.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 8.Type F for 60Hz only. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:TS-1000-SPEC 2021-08-27 PDF
Документация на TS-1000-248B

TS-1000.cdr

Дата модификации: 24.08.2021

Размер: 103.7 Кб

2 стр.

TS-1000 1000W True Sine Wave DC-AC Power Inverter series Features : True sine wave output (THD<3%) High surge power up to 2000W High efficiency up to 92% Power ON-OFF switch Standby saving mode can be selected Front panel indicator for operation status Built-in fan ON-OFF control function Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input reverse polarity / Overload Application : Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc. 2 years warranty E13 SPECIFICATION MODEL TS-1000-124 TS-1000-112 TS-1000-148 TS-1000-212 TS-1000-224 TS-1000-248 1000W RATED POWER (Typ.) MAXIMUM OUTPUT POWER (Typ.) 1150W for 180 sec. / 1500W for 10 sec. / surge power 2000W for 30 cycles Factory setting set at 110VAC Factory setting set at 230VAC 100 / 110 / 115 / 120VAC selectable by setting button S.W 200 / 220 / 230 / 240VAC selectable by setting button S.W FREQUENCY 60 0.1Hz 50 0.1%Hz WAVEFORM True sine wave (THD<3%) at rated input voltage AC VOLTAGE OUTPUT SAVING MODE (Typ.) Load FRONT PANEL INDICATOR Battery voltage level, output load level, saving mode, fault and operation status BAT. VOLTAGE 12V VOLTAGE RANGE (Typ.) DC CURRENT (Typ.) 10.5 ~ 15VDC 100A 24V 89% Open & sealed lead acid Note.1 88% BATTERY TYPES FUSE BATTERY BAT. LOW ALARM INPUT PROTECTION BAT. LOW SHUTDOWN REVERSE POLARITY OVER TEMPERATURE OUTPUT SHORT OUTPUT PROTECTION OVER LOAD (Typ.) GFCI PROCTECTION WORKING TEMP. WORKING HUMIDITY STORAGE TEMP., HUMIDITY VIBRATION SAFETY STANDARDS LVD SAFETY & WITHSTAND VOLTAGE EMC ISOLATION RESISTANCE NOTE 12V 24V 48V 42 ~ 60VDC 25A 10.5 ~ 15VDC 21 ~ 30VDC 42 ~ 60VDC 100A 50A 25A 90% 90% 91% 92% 40A*4 11.3 4% 40A*2 22.5 4% 20A*2 45 4% 40A*4 11.3 4% 40A*2 22.5 4% 20A*2 45 4% 10.5 4% 21 4% 42 4% 10.5 4% 21 4% 42 4% By internal fuse open 90 70 5 5 Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode Protection type : Shut down o/p voltage, re-power on to recover 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover Optional (Only type F) 0 ~ +40 @ 100% load ; +60 @ 50% load 20% ~ 90% RH non-condensing -30 ~ +70 None o / -22 ~ +158 F, 10 ~ 95% RH 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes UL458 (only for "GFCI" receptacle-Type F ) None None Bat I/P - AC O/P:3.0KVAC EN60950-1 AC O/P - FG:1.5KVAC AC O/P-FG, Bat I/P-FG:100M Ohms/500VDC / 25 EMI CONDUCTION&RADIATION Compliance to FCC class A None EMS IMMUNITY OTHERS 48V 1mA OFF MODE CURRENT DRAW ENVIRONMENT 5W will be changed to standby mode 21 ~ 30VDC 50A 6W @ standby saving mode NO LOAD DISSIPATION EFFICIENCY (Typ.) 50/60Hz selectable by setting button S.W 3.0% AC REGULATION (Typ.) INPUT 50/60Hz selectable by setting button S.W / 70% RH Compliance to EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark Compliance to EN61000-4-2,3,8 ENV50204 DIMENSION PACKING 345*184*70mm (L*W*H) 4.3Kg; 2pcs/9.6Kg/1.16CUFT COOLING Loading controlled cooling fan for GFCI receptacle-type F ; Thermostatically controlled cooling fan for others. 1.Efficiency is tested by 750W, linear load at 13V, 26V, 52V input voltage. 2.All parameters not specified above are measured at rated load, 25 of ambient temperature. File Name:TS-1000-SPEC 2009-02-07 PDF
Документация на серию TS-1000

TS-1000.cdr

Дата модификации: 07.05.2009

Размер: 572.7 Кб

2 стр.
