RT-50C

MEAN WELL
Компактный AC-DC (DC-DC), 50Вт, Uвх=88-264VAC (125-373VDC), три выхода +5В/4А, +15В/1.5А, -15В/0,5А, подстр. Uвых1=4,75-5,5В, изоляция 3кVAC (вх-вых), 1,5кVAC (вх-корп), 99х97х36 мм, -20...+70°С Производитель: MEAN WELL
развернуть ▼ свернуть ▲
Фотография серии RT-50

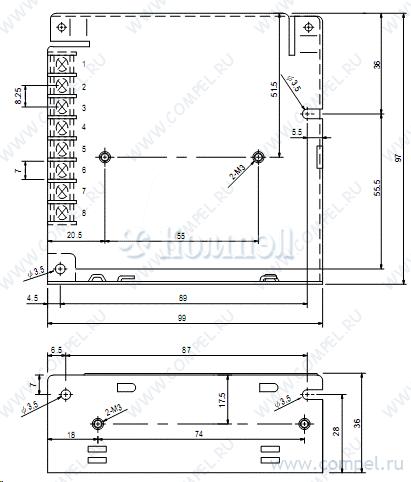

Чертеж серии RT-50



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 99×97×36 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 2

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
A+ RT-65C (MW)

— в коробках 30 шт КЗ, перегрузка, перенапряжение AC-DC Regulated Power Supply Module
A+ T-50C (MW)

— AC-DC сетевой преобразователь - P вых: 50 Вт; Выход: 5 В, 15 В, -15 В; U1: 4.75...5.5 В... КЗ, перегрузка, перенапряжение —

Файлы 2

показать свернуть
R T- 5 0 50W Triple Output Switching Power Supply series User’s Manual ■ Features : Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Cooling by free air convection LED indicator for power on 100% full load burn-in test All using 105℃ long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70℃ Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 SPECIFICATION UL62368-1 MODEL RT-50A RT-50B BS EN/EN62368-1 IEC62368-1 RT-50C TPTC004 RT-50D OUTPUT NUMBER CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 CH3 DC VOLTAGE 5V 12V -5V 5V 12V -12V 5V 15V -15V 5V 24V 12V RATED CURRENT 4A 2A 0.5A 4A 2A 0.5A 4A 1.5A 0.5A 3A 1A 1A 0 ~ 2.5A 0 ~ 1A 0 ~ 5A 0 ~ 2.5A 0 ~ 1A 0 ~ 5A 0 ~ 2A 0 ~ 1A 0 ~ 5A 0 ~ 1.5A 0 ~ 1A CURRENT RANGE Note.3 0 ~ 5A RATED POWER 46.5W 50W 50W 51W RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 100mVp-p 80mVp-p 120mVp-p 120mVp-p 80mVp-p 120mVp-p 120mVp-p 80mVp-p 150mVp-p 120mVp-p OUTPUT INPUT VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V ±8.0% VOLTAGE TOLERANCE Note.3 ±2.0% ±3.0% CH1: 4.75 ~ 5.5V ±2.0% ±8.0% ±3.0% CH1: 4.75 ~ 5.5V ±2.0% ±8.0% ±3.0% CH1: 4.75 ~ 5.5V ±2.0% ±8.0% ±6.0% LINE REGULATION Note.4 ±0.5% ±1.5% ±0.5% ±0.5% ±1.5% ±0.5% ±0.5% ±1.5% ±0.5% ±0.5% ±2.0% ±2.0% LOAD REGULATION Note.5 ±1.0% ±3.0% ±1.0% ±1.0% ±3.0% ±1.0% ±1.0% ±3.0% ±1.0% ±1.0% ±3.0% ±4.0% SETUP, RISE TIME 500ms, 20ms/230VAC HOLD UP TIME (Typ.) 60ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 75.5% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.3A/115VAC 0.8A/230VAC COLD START 48A/230VAC LEAKAGE CURRENT <2mA / 240VAC OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 6) EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION PACKING NOTE 1200ms, 30ms/115VAC at full load 10ms/115VAC at full load 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 75.5% 76% 78% 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed -25 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -40 ~ +85℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃)on +5V output 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 169.2Khrs min. MIL-HDBK-217F (25℃) 99*97*36mm (L*W*H) 0.41Kg; 45pcs/19.5Kg/0.94CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation, when multi-channel output, it is recommended that CH1 load > 10%. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:RT-50-SPEC 2021-09-15 PDF
Документация на RT-50D

RT-50-20210915.cdr

Дата модификации: 28.09.2021

Размер: 100.9 Кб

2 стр.

R T- 5 0 50W Triple Output Switching Power Supply series Features : Universal AC input / Full range Protections:Short circuit/Over load/Over voltage Cooling by free air convection LED indicator for power on 100% full load burn-in test All using 105 long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70 Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty SPECIFICATION MODEL RT-50A RT-50B RT-50C RT-50D OUTPUT NUMBER CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 DC VOLTAGE 5V 12V -5V 5V 12V -12V 5V 15V -15V 5V 24V 12V RATED CURRENT 4A 2A 0.5A 4A 2A 0.5A 4A 1.5A 0.5A 3A 1A 1A CURRENT RANGE 0.5 ~ 5A 0.2 ~ 2.5A 0.1 ~ 1A 0.5 ~ 5A 0.2 ~ 2.5A 0.1 ~ 1A 0 ~ 5A 0.2 ~ 2A 0.1 ~ 1A 0.5 ~ 5A 0.2 ~ 1.5A 0.1 ~ 1A RATED POWER 46.5W 50W 50W CH3 51W RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 100mVp-p 80mVp-p 120mVp-p 120mVp-p 80mVp-p 120mVp-p 120mVp-p 80mVp-p 150mVp-p 120mVp-p OUTPUT VOLTAGE ADJ. RANGE VOLTAGE TOLERANCE Note.3 INPUT CH1: 4.75 ~ 5.5V 2.0% 6.0% 2.0% CH1: 4.75 ~ 5.5V 2.0% 6.0% 2.0% CH1: 4.75 ~ 5.5V 2.0% +8,-4% 2.0% CH1: 4.75 ~ 5.5V 2.0% + 8,-4% 6.0% LINE REGULATION Note.4 0.5% 1.5% 0.5% 0.5% 1.5% 0.5% 0.5% 1.5% 0.5% 0.5% 2.0% 2.0% LOAD REGULATION Note.5 1.0% 3.0% 1.0% 1.0% 3.0% 1.0% 1.0% 3.0% 1.0% 1.0% 3.0% 4.0% SETUP, RISE TIME 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load HOLD TIME (Typ.) 60ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 77% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.3A/115VAC 0.8A/230VAC COLD START 36A/230VAC LEAKAGE CURRENT <2mA / 240VAC 10ms/115VAC at full load 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 77% 78% 80% 110 ~ 150% rated output power OVER LOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed -25 ~ +70 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 )on +5V output 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC SAFETY & ISOLATION RESISTANCE EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B EMC (Note 6) HARMONIC CURRENT EMS IMMUNITY MTBF OTHERS DIMENSION PACKING NOTE Compliance to EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2) heavy industry level, criteria A 169.2Khrs min. MIL-HDBK-217F (25 99*97*36mm (L*W*H) 0.41Kg; 45pcs/19.5Kg/0.9CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name:RT-50-SPEC 2006-04-12 PDF
Документация на серию RT-50

RT-50.cdr

Дата модификации: 21.04.2006

Размер: 402.3 Кб

2 стр.
