L-934LID

Kingbright
LED, LOW CURRENT, 3MM, RED; LED / Lamp Size:3mm / T-1; Colour, LED:HE Red; Luminous Intensity, Typ:3mcd; Angle, Viewing:60°; Current, Forward If:30mA; Voltage, Vf Max:2.5V; Temperature, Operating Range:-40°C to +85°C; Case Style:Radial; Current, If Luminous Intensity:2mA; Current, If Max:7mA; Depth, Lead Cross-section:0.5mm; Diameter, External:2.9mm; LED Colour Presentation:; Length / Height, External:4.6mm; Lens Type:Tinted Diffused; Luminous Intensity, Min @ If:0.7mcd; Pitch, Lead:2.54mm; Voltage, PIV Max:5V; Voltage, Vf Typ:2.2V; Wavelength, Peak:625nm; Wavelength, Typ:625nm; Width, Lead Cross-section:0.5mm
развернуть ▼ свернуть ▲

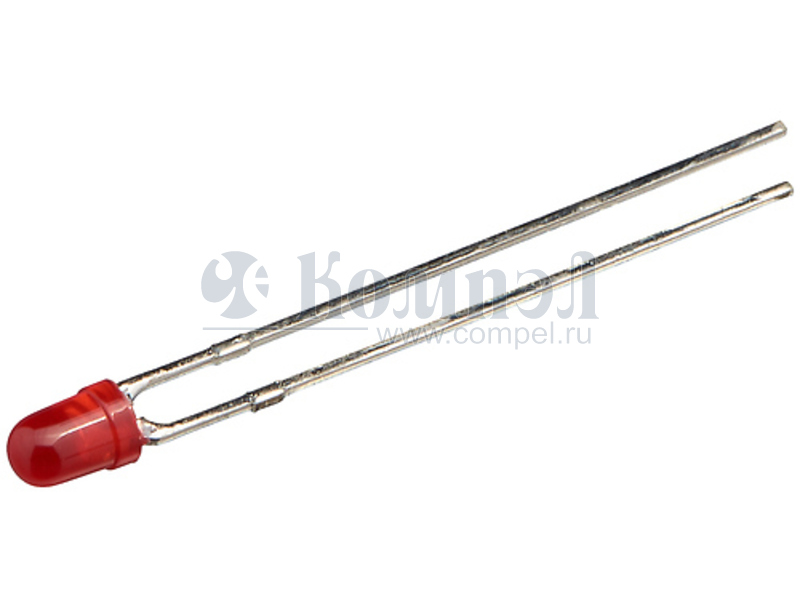

Внешний вид L-934LID

Аналоги 3

показать свернуть
Тип Наименование Корпус Упаковка i Цвет N λ1 Длина волны 2 λ3 Iv1 Iv2 Iv3 Tц Поток U Pик αX αY CIE x CIE y Корпус Линза Схема T раб Примечания Карточка
товара
P= L-7104LID (KGB)

— 1000 шт 617 — — — — — — — — — — — — — — —
P- L-934LGD (KGB)

— 1000 шт 568 — — — — — — — — — — — — — —
P- FYL-3014ED1A (FORYARD)

LED3MM 1000 шт 625 — — — — — — — — — — — — —

Файлы 2

показать свернуть
T-1 (3mm) LOW CURRENT LED LAMPS L934LID HIGH EFFICIENCY RED L934LGD GREEN L934LYD YELLOW L934LSRD SUPER BRIGHT RED Features Description ! LOW CURRENT IF=2mA OPERATING. The High Efficiency Red source color devices are made ! HIGH LIGHT OUTPUT AT LOW CURRENTS. with Gallium Arsenide Phosphide on Gallium Phosphide ! LOW POWER CONSUMPTION. Orange Light Emitting Diode ! LOW CURRENT REQUIREMENTS. The Green source color devices are made with Gallium ! WIDE ! I.C. VIEWING ANGLE. Phosphide Green Light Emitting Diode.. COMPATIBLE. ! RELIABLE The Yellow source color devices are made with Gallium AND RUGGED. Arsenide Phosphide on Gallium Phosphide Yellow Light Emitting Diode. The Super Bright Red source color devices are made with Gallium Aluminum Arsenide Red Light Emitting Diode. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the lead emerge package. 4. Specifications are subject to change without notice. SPEC NO: CDA0809 APPROVED : J. Lu REV NO: V.1 CHECKED : D i g i t a l l y s i g n e d b y Y A N G S H O U F E N c n = Y A N G S H O U F E N , o u = K I N G B R I H G T , o = 4 2 , c = U S D a t e : 2 0 0 1 . 1 1 . 2 0 1 8 : 3 1 : 3 7 + 0 8 '0 0 'R e a s o n : D o c u m e n t i s c e r t i f i e d DATE: NOV/18/2001 DRAWN: Z.W.Yan PAGE: 1 OF 5 PDF
Документация на L-934LID

The DatasheetArchive - Datasheet Search Engine http://www.datasheetarchive.com

Дата модификации: 10.04.2008

Размер: 142.7 Кб

5 стр.

T-1 (3mm) SOLID STATE LAMP L-934LID HIGH EFFICIENCY RED Features Description ! LOW The High Efficiency Red source color devices are made POWER CONSUMPTION. ! POPULAR T-1 DIAMETER PACKAGE. with Gallium Arsenide Phosphide on Gallium Phosphide ! GENERAL PURPOSE LEADS. Orange Light Emitting Diode. ! RELIABLE AND RUGGED. ! LONG LIFE - SOLID STATE RELIABILITY. ! AVAILABLE ! LOW ON TAPE AND REEL. CURRENT IF=2mA OPERATING. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the lead emerge package. 4. Specifications are subject to change without notice. SPEC NO: DSAB6346 APPROVED: J.LU REV NO: V.3 CHECKED:Allen Liu DATE:DEC/30/2002 DRAWN:K.ZHANG PAGE: 1 OF 3 PDF
Документация на L-934LID

Дата модификации: 30.12.2002

Размер: 59.6 Кб

3 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
