Серия MOSFET силовых модулей E0

Leapers

Общие характеристики

 Раздел MOSFET силовой модуль
Напряжение сток-исток максимальное

Документация на серию E0

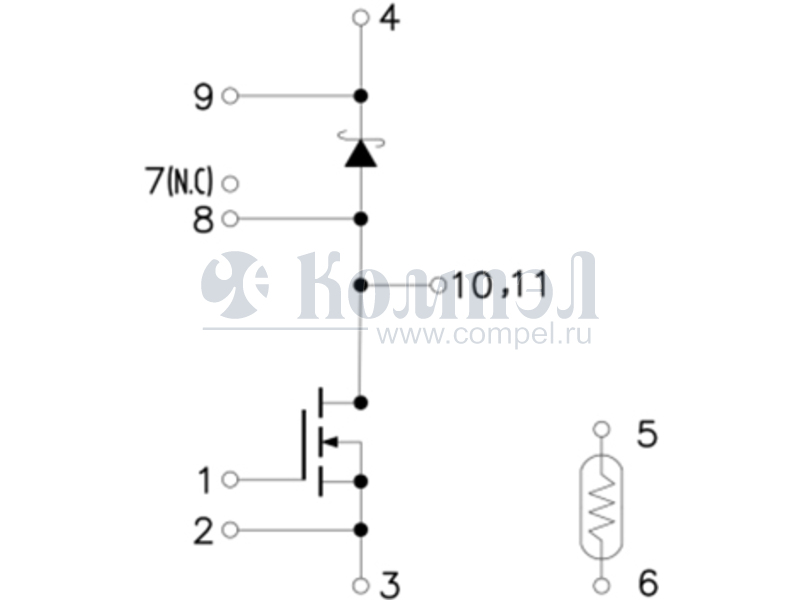

DFS05HF12EYR1 1200V/5.5mΩ Half Bridge SiC MOSFET Module Description Features The DFS05HF12EYR1 is a half bridge SiC MOSFET Power Module. It integrates high performance SiC MOSFET chips designed for the applications such as Solar Inverter Systems, Fuel cell-DC/DC converter, Uninterruptible Power Supplier, Energy Storage Systems.  Blocking voltage:1200V      5.5m Rds(on) Low Switching Losses 175°C maximum junction temperature Si3N4 AMB Thermistor inside Applications     Solar inverter Systems Fuel cell-DC/DC converter Uninterruptible Power Supplier Energy Storage Systems Circuit diagram Figure 1. Out drawing & circuit diagram for DFS05HF12EYR1 www.leapers-power.com Preliminary datasheet _Ver.C EN 1/8 PDF
Документация на DFS05HF12EYR1

DFS05HF12EYR1 ver C

Дата модификации: 05.01.2023

Размер: 2.05 Мб

8 стр.

    Товары серии E0

    Наименование i Упаковка Схема Iи @25°C RDS-ON (мин)
    DFS05HF12EYR1 (LEAPERS)

    DFS06HF12EYB1 (LEAPERS)

    DFS09CU12EYQ1 (LEAPERS)

    DFS09HF12EYC1 (LEAPERS)

    DFS09HF12EYQ1 (LEAPERS)

    DFS12HF12EYQ1 (LEAPERS)

    DFS13HF12EYB1 (LEAPERS)

    DFS20HF12EYQ1 (LEAPERS)

    DFS26HF12EYQ1 (LEAPERS)

    DFS26HH12EYQ1 (LEAPERS)

    DFS36FB12EYQ1 (LEAPERS)

    DFS40HF12EYQ1 (LEAPERS)

    DFS40HH12EYQ1 (LEAPERS)

    DFS80FB12EYQ1 (LEAPERS)
