LP60-010F

WAYON
DOCUMENT: R20048 REV LETTER: F PAGE NO: 1 OF 3 REV DATE: 2019-11-13 PART NUMBER: LP60-010F Polymer PTC Devices Wayon Electronics Co., Ltd. No.1001,Shiwan 7th Road,Pudong,Shanghai 201202,P.R.China Tel: 86-21-50968309 Fax: 86-21-50968310 Http://www.way-on.com R-line resettable fuses E-mail: market@way-on.com Features Radial leaded devices Cured, flame retardant epoxy polymer insulating mat...
развернуть ▼ свернуть ▲

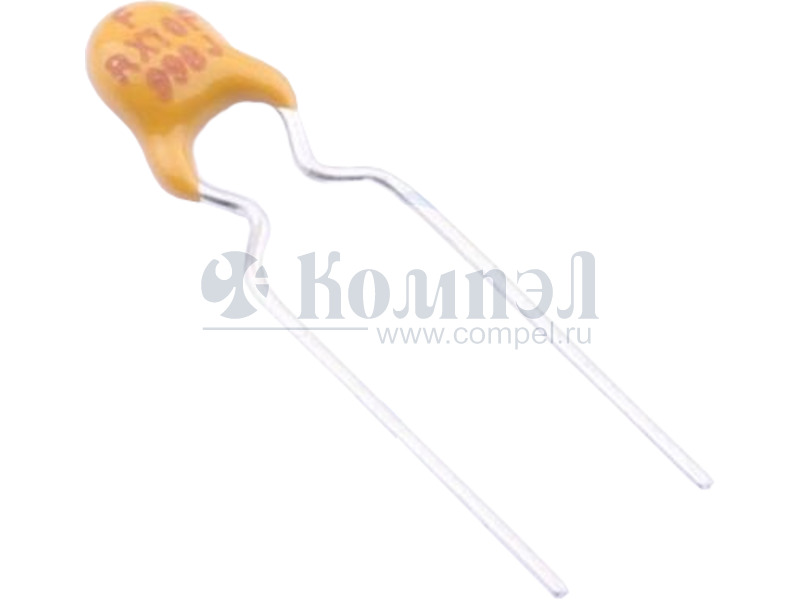

Внешний вид серии LP60

Технические характеристики

показать свернуть
Ток удержания
Ток срабатывания
Рабочий ток (max)
Рабочее напряжение (max)
Рабочее сопротивление
Время срабатывания
Корпус
Примечания PTC Resettable Fuse, Through Hole Mount
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
DOCUMENT: R20048 REV LETTER: F PAGE NO: 1 OF 3 REV DATE: 2019-11-13 PART NUMBER: LP60-010F Polymer PTC Devices Wayon Electronics Co., Ltd. No.1001,Shiwan 7th Road,Pudong,Shanghai 201202,P.R.China Tel: 86-21-50968309 Fax: 86-21-50968310 Http://www.way-on.com R-line resettable fuses E-mail: market@way-on.com Features Radial leaded devices Cured, flame retardant epoxy polymer insulating material meets UL94 V-0 requirements Agency Recognition: UL、TUV Product Dimensions (mm) Part number LP60-010F A B C Max. Max. Min. 5.7 10.9 4.4 D E F Lead Max. Min. Max. Typ. Size(φ) 5.8 7.6 3.1 1.1 0.5 Marking system LP Voltage rating Product family Current rating * Lead materials: Tin-plate metal wire. * Lead-free devices are available, the right logo is lead-free mark of wayon. Electrical Characteristics Part number LP60-010F IH IT Vmax Imax Pd typ Rmin Rmax R1max (A) (A) Current(A) Max. Time-to-trip Time(s) (V) (A) (W) (Ω) (Ω) (Ω) 0.10 0.20 0.50 8.0 60 40 0.51 2.50 4.50 7.50 IH=Hold current: maximum current at which the device will not trip at 25℃ still air. IT=Trip current: minimum current at which the device will always trip at 25℃ still air. Vmax=Maximum voltage device can withstand without damage at rated current. Imax=Maximum fault current device can withstand without damage at rated voltage. Max. Time-to-trip =Maximum time to trip(s) at assigned current. Pdtyp=Typical power dissipation: typical amount of power dissipated by the device when in state air environment. Rmin=Minimum device resistance at 25℃ prior to tripping. Rmax=Maximum device resistance at 25℃ prior to tripping. R1max= Maximum resistance of device when measured one hour post trip at 25℃. Thermal Derating Chart-IH(A) Maximum ambient operating temperatures(℃) Part number LP60-010F -40 -20 0 25 40 50 60 70 85 0.18 0.15 0.13 0.10 0.08 0.07 0.06 0.05 0.03 Specifications are subject to change without notice. Page 1 of 3 PDF
Документация на LP60-010F

Shang Hai Wayon Thermo-Electro

Дата модификации: 13.07.2022

Размер: 215.4 Кб

3 стр.

Polymer PTC Devices Features  Radial leaded devices  UL94 V-0 insulating material  Agency Recognition: UL、CSA、TUV  Lead-free and compliant with the European Union RoHS Directive 2011/65/EU LP60 series Product Dimensions Part number LP60-005F LP60-010F LP60-017F LP60-020F LP60-025F LP60-030F LP60-040F LP60-050F LP60-065F LP60-075F LP60-090F LP60-110F LP60-135F LP60-160F LP60-185F LP60-250F LP60-300F LP60-375F A Max. 4.0 4.0 4.0 5.5 5.5 7.7 7.7 7.7 10.0 11.0 12.0 13.0 15.0 16.0 18.0 21.5 25.0 28.5 B Max. 10.5 10.5 10.5 10.5 10.5 12.7 12.7 12.7 15.0 16.0 17.0 18.0 20.0 21.0 23.0 26.5 30.0 33.5 C Min. 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 9.5 9.5 9.5 Max. 5.8 5.8 5.8 5.8 5.8 5.8 5.8 5.8 5.8 5.8 5.8 5.8 5.8 5.8 5.8 10.9 10.9 10.9 D Min. 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 E Max. 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 Lead Style 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 Size(φ) 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 Marking system LP Voltage rating Product family Current rating * Lead materials: Tin-plate metal wire. Style1 Style2 CYG Wayon Circuit protection Co., Ltd. Tel: 86-21-50968308 No. 1001, Shiwan 7th Road, Shanghai, 201207, China Specifications are subject to change without notice Fax: 86-21-50968310 E-mail: market@way-on.com http://www.way-on.com Page 1 of 3 PDF
Документация на LP60-005F

Subject:

Дата модификации: 13.03.2015

Размер: 201.6 Кб

3 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
