NST1412-DMSR

Novosense
NST1412 High-Accuracy, Remote and Local Temperature Sensor with I2C and SMBus Interface Datasheet (EN) 0.3 Product Overview  The NST1412 device is a high-accuracy, low-power remote temperature sensor with a built-in local temperature sensor. The remote temperature sensors are typically low-cost discrete NPN or PNP transistors, or substrate thermal transistors or diodes that are integral part...
развернуть ▼ свернуть ▲

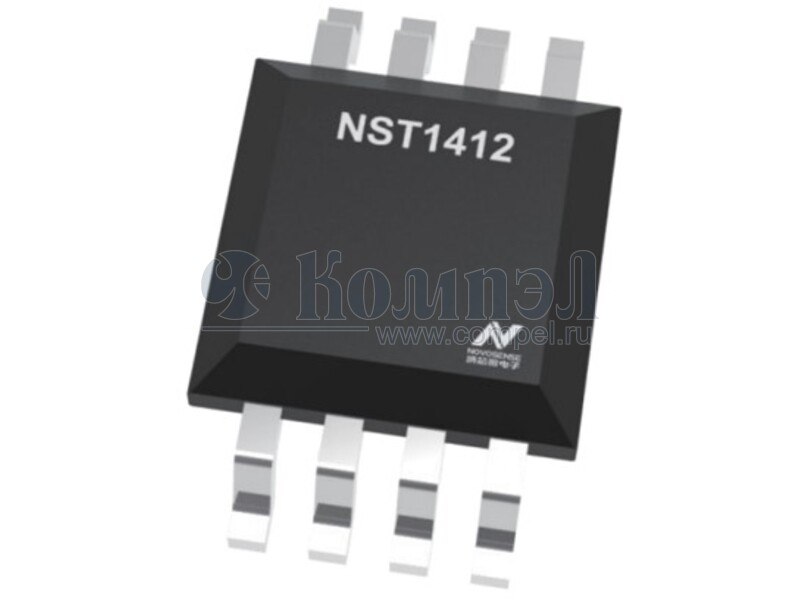

Внешний вид NST1412-DMSR

Технические характеристики

показать свернуть
Тип датчика
Диапазон измеряемых температур
Точность измерения ±
Интерфейс
Примечания
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
NST1412 High-Accuracy, Remote and Local Temperature Sensor with I2C and SMBus Interface Datasheet (EN) 0.3 Product Overview  The NST1412 device is a high-accuracy, low-power remote temperature sensor with a built-in local temperature sensor. The remote temperature sensors are typically low-cost discrete NPN or PNP transistors, or substrate thermal transistors or diodes that are integral parts of microprocessors, microcontrollers, or field-programmable gate arrays (FPGAs). Temperature is represented as a 11-bit digital code for both local and remote sensors, giving a resolution of 0.125 °C. The two-wire serial interface accepts the SMBus communication protocol with up to six different pin-programmable addresses.  Advanced features [such as series resistance cancellation, programmable nonideality factor (η- factor), programmable offset, programmable temperature limits, and a programmable digital filter] are combined to provide a robust thermal monitoring solution with improved accuracy and noise immunity. The NST1412 is ideal for multi-location, high-accuracy temperature measurements in a variety of communication, computing, instrumentation, and industrial applications. The device is specified for operation over a supply voltage range of 1.7 V to 5.5 V, and a temperature range of -40 °C to 125 °C. Support for diodes requiring the BJT/transistor model including advanced processor geometries Automatically determines remote diode type and optimal settings Resistance Error Correction Remote Temperature Monitors - ±1 °C max accuracy (-20 °C < TDIODE < 85 °C) - 0.125 °C resolution - Supports up to 2.2nF diode filter capacitor Local Temperature Monitor - ±1 °C accuracy - 0.125 °C resolution Programmable temperature limits for ALERT Available in RoHS compliant package: 8-pin MSOP.      Applications     Notebook Computers Desktop Computers Industrial Embedded applications Device Information Part Number NST1412-DMSR Package MSOP (8) Body Size 4.9mm × 3.0mm Key Features  Programmable SMBus address Typical Application CPU/GPU Thermal Junction VDD=3.3V DP1 3.3-5V HOST VDD DN1 SCL SDA NST1412 ALERT TNERM/ADDR SMBus Interface Power Control GND Copyright © 2020, NOVOSENSE Page 1 PDF
Документация на NST1412-DMSR

Дата модификации: 27.05.2021

Размер: 2.11 Мб

29 стр.
