NST118-CDNR

Novosense
NST118 High-Accuracy, Low-Power Temperature Sensor with SMBus and I2C Interface Datasheet (EN) 1.2 Product Overview Applications The NST118 is a low-power, high accuracy digital temperature sensor compatible with SMBus and I2C interfaces, and supports 4 device addresses, and provides SMBus reset and alert functions. The device operates in the power supply voltage range of 1.71V to 3.6V, and o...
развернуть ▼ свернуть ▲

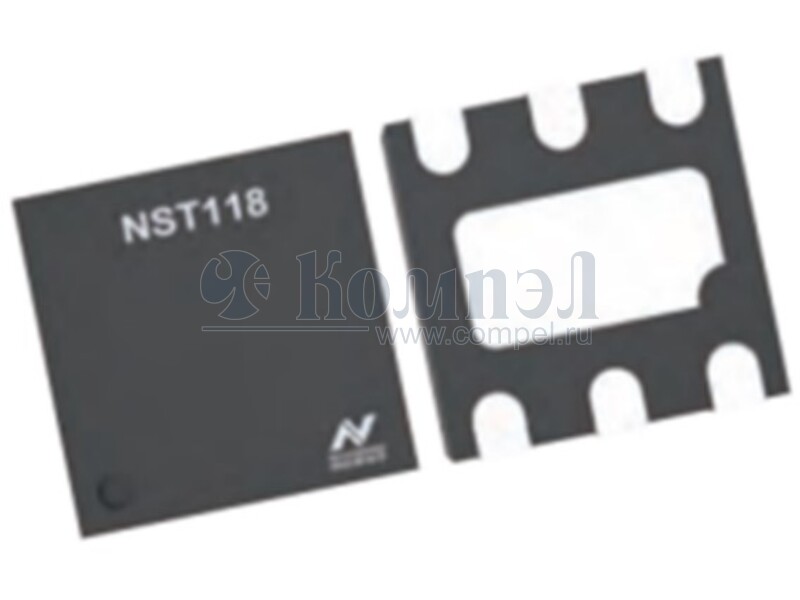

Внешний вид NST118-CDNR

Технические характеристики

показать свернуть
Тип датчика
Диапазон измеряемых температур
Точность измерения ±
Интерфейс
Примечания
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
NST118 High-Accuracy, Low-Power Temperature Sensor with SMBus and I2C Interface Datasheet (EN) 1.2 Product Overview Applications The NST118 is a low-power, high accuracy digital temperature sensor compatible with SMBus and I2C interfaces, and supports 4 device addresses, and provides SMBus reset and alert functions. The device operates in the power supply voltage range of 1.71V to 3.6V, and offers typical accuracy of 0.1°C from 25°C to 45°C and maximum accuracy of 1°C in the full temperature range -40°C to 125°C. The NST118 on-chip 12-bit analog-to-digital converter (ADC) provides resolution down to 0.0625°C. It is highly linear and does not require complex calculations or lookup tables to derive temperature.  General System Thermal Management  Computer Peripheral Thermal Protection  Notebook Computers  Industrial Internet of Things (IoT)  Communications Infrastructure  Power-system Monitors  Thermal Protection  Environmental Monitoring and HVAC NST118 has an operating temperature range of -40°C to 125°C and is available in DFN(6) package, making it suitable for on-board and off-line applications in the automotive, industrial, and consumer markets. Because of low power consumption, it can also be applied to IoT. In addition, it is a good substitute for negative temperature coefficient (NTC) and positive temperature coefficient (PTC) thermistors. Device Information Part Number Package Body Size NST118-CDNR DFN(6) 2mm×2mm Typical Application Supply Voltage 1.71V to 3.6V Key Features  High Accuracy over –40°C to 125°C Wide Temperature Range 25 °C ~ 45 °C:  0.1°C (Typical) -20 °C ~ 60°C:  0.5°C (Maximum) -40 °C ~125°C:  1°C (Maximum)  Proportional to Temperature with 0.0625°C Resolution  Power up Defaults Permit Stand-Alone Operation as Thermostat  Supports up to 4 Device Addresses  Supply Operation range from 1.71V to 3.6V  Operating Current: Pullup Resistor 5.1KΩ Two Wire Host Controller SCL GND ALERT 1 2 3 6 NST118 5 4 SDA VDD Supply Bypass Capactior 0.01uF ADD0 Figure 1 The Typical Application of NST118 6.5μA (Typical, 4Hz conversion cycle) 2.9μA (Typical, 1Hz conversion cycle)  Shutdown current: 0.5μA (Typical)  Digital Interface: SMBus, I2C  Package: DFN (6) Copyright © 2022, NOVOSENSE Page 1 PDF
Документация на NST118-CDNR

Дата модификации: 01.09.2022

Размер: 1 Мб

22 стр.

    Публикации 1

    показать свернуть
    12 апреля 2024
    статья

    Датчики температуры Novosense для мониторинга и контроля

    Александр Калачев (г. Барнаул) Китайская компания Novosense выпускает широкий и разнообразный ассортимент датчиков температуры, большинство из которых Pin–to–Pin–совместимы и не уступают по параметрам западным аналогам. В... ...читать
