PB-300N-48

MEAN WELL
AC/DC преобразователи
развернуть ▼ свернуть ▲
Фотография серии PB-300

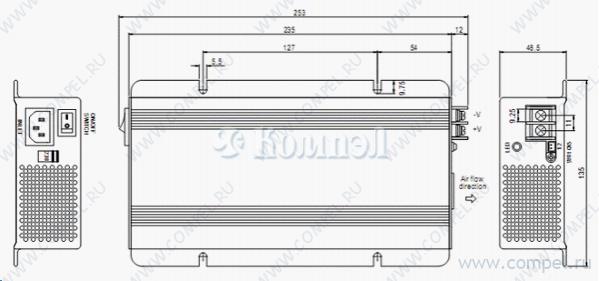

Чертеж серии PB-300



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Количество выходов
Применение
Примечание AC-DC Power Factor Correction Module
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
PB-300 300W Single Output Battery Charger series ■ Features : Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1) 3 stage charging AC 115/230VAC selected by switch Built-in passive PFC function compliance to BS EN/EN61000-3-2 Class A (option) Protection: Short circuit / Reverse polarity / Over voltage / Over temperature Cooling by free air convection 2 color LED loading indicator Low cost, High reliability 3 years warranty (except for 48V) UL62368-1 PB 300 P TPTC004 IEC60335-1,-2-29 (P type only) 12 12:14.4V 24:28.8V 48:57.6V P:With Passive PFC N:Without Passive PFC SPECIFICATION PB-300□-24 PB-300□-48 BOOST CHARGE VOLTAGE Vboost 14.4V PB-300□-12 28.8V 57.6V FLOAT CHARGE VOLTAGE Vfloat 13.6V 27.2V 54.4V VOLTAGE ADJUSTABLE RANGE 13 ~ 14.7V 26 ~ 28.8V 52 ~ 58.6V 30 ~ 100Ah 15 ~ 50Ah 10.5A 5.3A 6.25A 3.2A MODEL OUTPUT RECOMMENDED BATTERY CAPACITY(AMP HOURS) Note 6 BATTERY TYPE 60 ~ 200Ah Open & Sealed Lead Acid MAX. OUTPUT CURRENT(Typ.) Note 8 20.85A CONTINUOUS OUTPUT CURRENT (Typ.) INPUT Note 7 VOLTAGE RANGE 90 ~ 132VAC / 180 ~ 264VAC selected by switch FREQUENCY RANGE 47 ~ 63Hz >0.65 (with P type) at 230VAC EFFICIENCY (Typ.) 85% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 6A/115VAC 3A/230VAC COLD START 60A LEAKAGE CURRENT <3.5mA / 240VAC SHORT CIRCUIT O/P Built in fuse (FS100) to protect short circuit condition, shut down o/p voltage and can not re-power on OVER VOLTAGE OVER TEMPERATURE FUNCTION REMOTE CONTROL (CN5) WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 5) EMC EMISSION OTHERS 86% 88% By internal fuse 16 ~ 18V 31 ~ 35V Protection type : Shut down o/p voltage, re-power on to recover Protection type : Automatically derate charge current until zero Open: Normal work 59 ~ 64V Short: Stop Charging -10 ~ +50 ℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -40 ~ +85 ℃ , 10 ~ 95% RH non-condensing ± 0.05%/ ℃ (0 ~ 45 ℃ ) 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes IEC60335-2-29 CB approved by TUV(except for 48V), UL62368-1, CSA C22.2 No. 62368-1 , EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 for P type only I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3 (only P type), EAC TP TC 020 EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 MTBF DIMENSION 115.8Khrs min. PACKING NOTE 127 ~ 187VDC / 254 ~ 370VDC POWER FACTOR (Typ.) REVERSE POLARITY PROTECTION 12.5A MIL-HDBK-217F (25 ℃ ) 253*135*48.5mm(L*W*H) 1.45Kg; 6pcs/9.7Kg/1.03CUFT 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details. 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 4. Tolerance : includes set up tolerance, line regulation and load regulation. 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 6. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation. 7. Test condition is at 25℃, charging current will change under different temperature. 8. Maximum charging current will be in the range of 90~110% rated output current. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:PB-300-SPEC 2021-06-01 PDF
Документация на PB-300N-48

PB-300-20210601.cdr

Дата модификации: 17.08.2021

Размер: 75.5 Кб

2 стр.

PB-300 300W Single Output Battery Charger series Features : 3 stage charging AC 115/230VAC selected by switch Built-in passive PFC function compliance to EN61000-3-2 Class A (option) Protection: Reverse Polarity / Short circuit / Over voltage / Over temperature Cooling by free air convection Charger for lead-acid batteries 2 color LED loading indicator Low cost, High reliability 2 years warranty (except for 48V) PB 300/360 P (P type only) 12 1.300W without FAN 2.360W with FAN 12:14.4V 24:28.8V 48:57.6V P:With Passive PFC N:Without Passive PFC SPECIFICATION MODEL PB-300 -12 PB-300 57.6V FLOAT CHARGE VOLTAGE 13.6V 27.2V 54V 26 ~ 28.8V 52 ~ 58.6V 40 ~ 125Ah 20 ~ 65Ah RECOMMENDED BATTERY CAPACITY(AMP HOURS)(Note 5) 80 ~ 200Ah BATTERY TYPE Open & Sealed Lead Acid OUTPUT CURRENT(max.) 20.85A 10.5A 5.3A 12.5A 6.25A 3.2A CURRENT (Typ.) PROTECTION -48 28.8V CONTINUOUS OUTPUT INPUT PB-300 14.4V VOLTAGE ADJUSTABLE RANGE 13 ~ 14.7V OUTPUT -24 BOOST CHARGE VOLTAGE (Note 6) VOLTAGE RANGE 90 ~ 132VAC / 180 ~ 264VAC selected by switch FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 85% POWER FACTOR (Typ.) >0.65 (with P type) at 230VAC AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 6A/115VAC 3A/230VAC COLD START 60A LEAKAGE CURRENT <3.5mA / 240VAC OVERLOAD 90 ~ 110% rated output current Protection type : Constant current limiting, recovers automatically after fault condition is removed REVERSE POLARITY By internal fuse OVER VOLTAGE OVER TEMPERATURE FUNCTION REMOTE CONTROL (CN5) WORKING TEMP. 86% 16 ~ 18V 31 ~ 35V Protection type : Shut down o/p voltage, re-power on to recover Protection type : Automatically derate charge current until zero Open: Normal work -10 ~ +50 88% 59 ~ 64V Short: Stop Charging (Refer to output load derating curve) 20 ~ 90% RH non-condensing WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY -40 ~ +85 , 10 ~ 95% RH TEMP. COEFFICIENT 0.05%/ (0 ~ 45 VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes IEC60335-2-29 CB Approved by TUV(except for 48V), UL60950-1 Approved SAFETY STANDARDS SAFETY & EMC (Note 4) WITHSTAND VOLTAGE MTBF DIMENSION PACKING NOTE I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B HARMONIC CURRENT EMS IMMUNITY OTHERS I/P-O/P:3KVAC ISOLATION RESISTANCE Compliance to EN61000-3-2,-3 (only P type) Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A 115.8Khrs min. MIL-HDBK-217F (25 ) 253*135*48.5mm(L*W*H) 1.45Kg; 6pcs/9.7Kg/0.95CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation. 6. Test condition is at 25 , charging current will change under different temperature. File Name:PB-300-SPEC 2007-03-05 PDF
Документация на серию PB-300

PB-300.cdr

Дата модификации: 23.03.2007

Размер: 297.2 Кб

2 стр.
