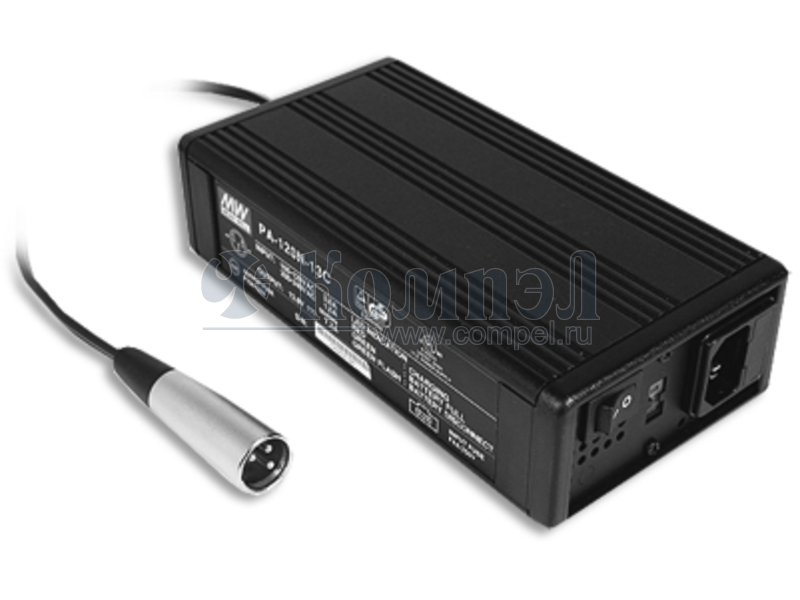

PA-120N-13C

MEAN WELL
Зарядные устройства
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрев, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Размер 180×96×49 мм
Рабочая температура
Примечание AC-DC Regulated Power Supply Module
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
120W Single Output Power Supply or Battery Charger PA / P B - 1 2 0 series ■ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ UL60950-1  S:Power Supply A:Voltage detector B:Current detector P A 120 P UL60950-1 TPTC004 (for PA/PB-120P-□C) (for PA/PB-120□-□C) (for PA/PB-120□-□P) 13 C □:O.D.M. number P:Open P.C.B. C:With case 13:13.8V 27:27.6V 54:55.2V P:With PFC N:None PFC SPECIFICATION MODEL OUTPUT PA/PB-120□-13□ PA/PB-120□-27□ PA/PB-120□-54□ DC VOLTAGE 13.8V 27.6V 55.2V RATED CURRENT 7.2A 4.3A 2.2A CURRENT RANGE 0 ~ 7.2A 0 ~ 4.3A 0 ~ 2.2A RATED POWER 99.36W 118.68W 121.44W LED INDICATED INPUT PA series voltage 105%±1%↓: RED / 105%±1%↑:GREEN PB series load 46%±10%↓: GREEN / 46%±10%↑:RED VOLTAGE RANGE 88 ~ 132VAC / 176 ~ 264VAC selected by switch FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR (Typ.) >0.65 (with PFC series) 248 ~ 370VDC EFFICIENCY (Typ.) 73% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 3A/115VAC 1.5A/230VAC COLD START 25A/115VAC LEAKAGE CURRENT <1.5mA / 240VAC OVERLOAD 90 ~ 110% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed PROTECTION OVER VOLTAGE OVER TEMPERATURE WORKING TEMP. 79% 50A/230VAC 15 ~ 17V 30 ~ 35V 60 ~ 66V Protection type : Hiccup mode, recovers automatically after fault condition is removed RTH2≧70℃±10℃ detect on RTH2 thermistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down -10 ~ +45℃ (Refer to "Derating Curve") WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION 20 ~ 90% RH non-condensing SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 4) EMC EMISSION UL60950-1, LVD BS EN/EN62368-1 , EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC OTHERS -20 ~ +85℃, 10 ~ 95% RH ±0.05%/℃ (0 ~ 45℃) 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 MTBF DIMENSION 149.6K hrs min. PACKING NOTE 79% MIL-HDBK-217F (25℃) PCB Type:144*90*33mm External case type:180*96*49mm (L*W*H) External case type: 1.1Kg; 16pcs / 17.9Kg / 1.56CUFT(without PFC) 1.24Kg; 16pcs / 20.1Kg / 1.56CUFT(with PFC) PCB Type : 0.36Kg; 36pcs / 14Kg / 0.99CUFT(without PFC) 0.5Kg; 36pcs / 19Kg / 0.99CUFT(with PFC) ℃       ℃℃ ※：https://www.meanwell.com/serviceDisclaimer.aspx File Name:PA,PB-120-SPEC 2021-06-01 PDF
Документация на PB-120P-54P

未命名 -1

Дата модификации: 31.05.2021

Размер: 574.1 Кб

2 стр.

120W Single Output Power Supply or Battery Charger PA / P B - 1 2 0 series Features : AC input range selected by switch Built-in passive PFC function compliance to EN61000-3-2 With AC ON-OFF switch 3 poles AC inlet with fuse holder Protections: Short circuit / Overload / Over voltage / Over temperature Charger type can be selected (Optional) Charger for lead-acid batteries 2 color LED loading indicator Open frame models available (Without safety approval) Low cost, High reliability 2 years warranty TUV Rheinland Product Safety S:Power Supply A:Voltage detector B:Current detector P A 120 P geprUfre Sicherheit 13 C :O.D.M. number P:Open P.C.B. C:With case 13:13.8V 27:27.6V 54:55.2V P:With PFC N:None PFC SPECIFICATION MODEL OUTPUT PA/PB-120 PA/PB-120 -27 PA/PB-120 13.8V 27.6V 55.2V RATED CURRENT 7.2A 4.3A 2.2A CURRENT RANGE 0 ~ 7.2A 0 ~ 4.3A 0 ~ 2.2A RATED POWER 99.36W 118.68W 121.44W LED INDICATED INPUT -13 DC VOLTAGE PA series voltage 105% 1% PB series load 46% 10% : RED / 105% 1% : GREEN / 46% 10% VOLTAGE RANGE 88 ~ 132VAC / 176 ~ 264VAC selected by switch FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR (Typ.) >0.65 (with PFC series) :GREEN :RED EFFICIENCY (Typ.) 73% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 3A/115VAC 1.5A/230VAC COLD START 25A/115VAC LEAKAGE CURRENT <1.5mA / 240VAC OVERLOAD 90 ~ 110% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed PROTECTION OVER VOLTAGE OVER TEMPERATURE WORKING TEMP. -54 79% 79% 50A/230VAC 15 ~ 17V 30 ~ 35V 60 ~ 66V Protection type : Hiccup mode, recovers automatically after fault condition is removed RTH2 70 10 detect on RTH2 thermistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down -10 ~ +45 (Refer to output load derating curve) 20 ~ 90% RH non-condensing WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY -20 ~ +85 , 10 ~ 95% RH TEMP. COEFFICIENT 0.05%/ (0 ~ 45 VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & EMC (Note 4) OTHERS ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B HARMONIC CURRENT EMS IMMUNITY Compliance to EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A MTBF DIMENSION 149.6K hrs min. PACKING NOTE UL60950-1, TUV EN60950-1, EN60335, EN60335-1, EN60335-2-29 approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC MIL-HDBK-217F (25 ) PCB Type:144*90*33mm External case type:180*96*49mm (L*W*H) 1.1Kg; 16pcs / 17.9Kg / 1.47CUFT(without PFC) 1.24Kg; 16pcs / 20.1Kg / 1.47CUFT(with PFC) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. With PFC I/P range: 95~132VAC/190~264VAC. 6. For open P.C.B. WITH 17.8CFM min. Forced air. File Name:PA,PB-120-SPEC 2008-05-06 PDF
Документация на серию PA-120

PA,PB-120.cdr

Дата модификации: 20.06.2008

Размер: 180.3 Кб

2 стр.
