MDR-40-24

MEAN WELL
AC/DC преобразователь: на DIN рейку; 40 Вт; выход 24В @ 1.7А; вход: 85...264VAC / 120...370VDC; -20...70°C
развернуть ▼ свернуть ▲
Фотография серии MDR-40

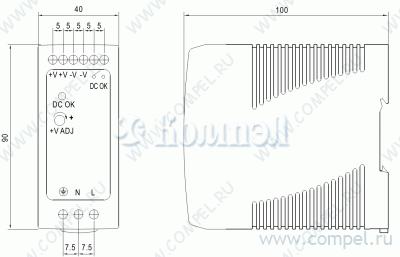

Чертеж серии MDR-40



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 40×90×100 мм
Рабочая температура
Примечание Низкое энергопотребление (менее 0,75 Вт) при работе без нагрузки
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 7

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
P+ MDR-60-24 (MW)

— в коробках 42 шт AC-DC сетевой преобразователь - P вых: 60 Вт; Выход: 24 В; U1: 24...30 В; I1: до 2.5 А;... КЗ, перегрузка, перенапряжение Низкое энергопотребление (менее 0,75 Вт) при работе без нагрузки
A+ DRA-40-24 (MW)

— в коробках 42 шт AC-DC сетевой преобразователь - P вых: 40 Вт; Выход: 24 В; U1: 24...30 В; I1: до 1.7 А;... ограничение тока, регулировка тока КЗ, перегрузка, перенапряжение потенциометр внутренний, напряжение внешнее 1-10 В, ШИМ, потенциометр внешний AC-DC Regulated Power Supply Module, 1 Output, 40.08W, Hybrid
A+ HDR-30-24 (MW)

— в коробках 96 шт компактный дизайн, базовая модель КЗ, перегрузка, перенапряжение — — AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid
A+ LI30-20B24PR2 (MORNSUN)

— 1 шт КЗ, перегрузка, перенапряжение — — — AC-DC Regulated Power Supply Module
A+ AMR3-24 (CHINFA)

— в коробках 10 шт AC-DC сетевой преобразователь - P вых: 36 Вт; Выход: 24 В; U1: 24...28 В; I1: до 1.5 А;... базовая модель, низкий профиль КЗ, перегрузка, перенапряжение — — —
A+ DRC-24V030W1RZ (DELTA)

—

 — перенапряжение, перегрузка, перегрев, КЗ — — — — — — — —
A+ DRS-24V50W1NZ (DELTA)

— — перенапряжение, перегрузка, перегрев, КЗ — — — — — — —

Файлы 2

показать свернуть
MDR-40 40W Single Output Industrial DIN Rail Power Supply ■ Features : Universal AC input/Full range Protections: Short circuit / Overload / Over voltage Cooling by free air convection Can be installed on DIN rail TS-35/7.5 or 15 Class I, Div 2 Hazardous Locations T4 LED indicator for power on DC OK relay contact No load power consumption<0.75W 100% full load burn-in test 3 years warranty series User’s Manual Bauar t gepruft Sicherheit egel ma ge od o s be wac g SPECIFICATION UL62368-1 MODEL MDR-40-5 MDR-40-12 MDR-40-24 MDR-40-48 5V 12V 24V 48V RATED CURRENT 6A 3.33A 1.7A 0.83A CURRENT RANGE 0 ~ 6A 0 ~ 3.33A 0 ~ 1.7A 0 ~ 0.83A RATED POWER 30W 12 ~ 15V 24 ~ 30V ±1.0% ±1.0% LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0% 88% 88% Note.5 500ms, 30ms/230VAC HOLD UP TIME (Typ.) 50ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz 78% 1.1A/115VAC 0.7A/230VAC COLD START 30A/115VAC 60A/230VAC <1mA / 240VAC FUNCTION DC OK SIGNAL WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING NOTE 20ms/115VAC at full load 120 ~ 370VDC AC CURRENT (Typ.) INRUSH CURRENT (Typ.) OVER VOLTAGE OTHERS 500ms, 30ms/115VAC at full load EFFICIENCY (Typ.) PROTECTION (Note 4) 39.8W ±1.0% 5 ~ 6V OVERLOAD EMC 40.8W 150mVp-p VOLTAGE TOLERANCE Note.3 ±2.0% VOLTAGE ADJ. RANGE LEAKAGE CURRENT SAFETY & 40W 120mVp-p 200mVp-p 48 ~ 56V SETUP, RISE TIME INPUT www.tuv.com ID 2000000000 TPTC004 BS EN/EN62368-1 IEC62368-1 DC VOLTAGE RIPPLE & NOISE (max.) Note.2 80mVp-p OUTPUT R33100 RoHS 86% 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed 6.25 ~ 7.25V 15.6 ~ 18V 31.2 ~ 36V 57.6 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover Relay contact rating(max.): 30V/1A resistive -20 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -40 ~ +85℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6 UL508, UL62368-1, TUV BS EN/EN62368-1,Class I, Div. 2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55024, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020 301.7K hrs min. MIL-HDBK-217F (25℃) 40*90*100mm (W*H*D) 0.3Kg; 42pcs/13.6Kg/0.82CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:MDR-40-SPEC 2021-09-15 PDF
Документация на MDR-40-5

MDR-40-20210915.cdr

Дата модификации: 15.09.2021

Размер: 114.5 Кб

2 стр.

40W Single Output Industrial DIN Rail Power Supply MDR-40 series Features : Universal AC input/Full range Protections: Short circuit / Overload / Over voltage Cooling by free air convection Can be installed on DIN rail TS-35/7.5 or 15 LED indicator for power on DC OK relay contact No load power consumption<0.75W 100% full load burn-in test 3 years warranty R SPECIFICATION MODEL MDR-40-5 MDR-40-12 MDR-40-24 MDR-40-48 DC VOLTAGE 5V 12V 24V 48V RATED CURRENT 6A 3.33A 1.7A 0.83A CURRENT RANGE 0 ~ 6A 0 ~ 3.33A 0 ~ 1.7A 0 ~ 0.83A RATED POWER 30W 40W 40.8W 39.8W 120mVp-p 150mVp-p 5 ~ 6V 12 ~ 15V 24 ~ 30V 200mVp-p 48 ~ 56V VOLTAGE TOLERANCE Note.3 2.0% 1.0% 1.0% 1.0% LINE REGULATION 1.0% 1.0% 1.0% 1.0% LOAD REGULATION 1.0% 1.0% 1.0% 1.0% RIPPLE & NOISE (max.) Note.2 80mVp-p OUTPUT VOLTAGE ADJ. RANGE SETUP, RISE TIME INPUT Note.5 500ms, 30ms/230VAC HOLD UP TIME (Typ.) 50ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz 78% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.1A/115VAC 0.7A/230VAC COLD START 30A/115VAC 60A/230VAC <1mA / 240VAC OVERLOAD PROTECTION OVER VOLTAGE FUNCTION DC OK SIGNAL WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY EMC (Note 4) OTHERS 86% 88% 88% 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed 6.25 ~ 7.25V 15.6 ~ 18V 31.2 ~ 36V 57.6 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover Relay contact rating(max.): 30V/1A resistive -20 ~ +70 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE 0.03%/ (0 ~ 50 Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6 UL508, TUV EN60950-1 Approved EMS IMMUNITY Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3 heavy industry level, criteria A MTBF 301.7K hrs min. MIL-HDBK-217F (25 40*90*100mm (W*H*D) 0.3Kg; 42pcs/13.6Kg/0.82CUFT I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:>100M Ohms/500VDC 25 70%RH ISOLATION RESISTANCE EMI CONDUCTION & RADIATION Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B Compliance to EN61000-3-2,-3 HARMONIC CURRENT DIMENSION PACKING NOTE 20ms/115VAC at full load 120 ~ 370VDC EFFICIENCY (Typ.) LEAKAGE CURRENT SAFETY & 500ms, 30ms/115VAC at full load ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. File Name:MDR-40-SPEC 2007-03-02 PDF
Документация на серию MDR-40

MDR-40.cdr

Дата модификации: 23.03.2007

Размер: 318.3 Кб

2 стр.
