KSC-01L

MEAN WELL
Оптически изолированный объединитель линий управления KNX
развернуть ▼ свернуть ▲

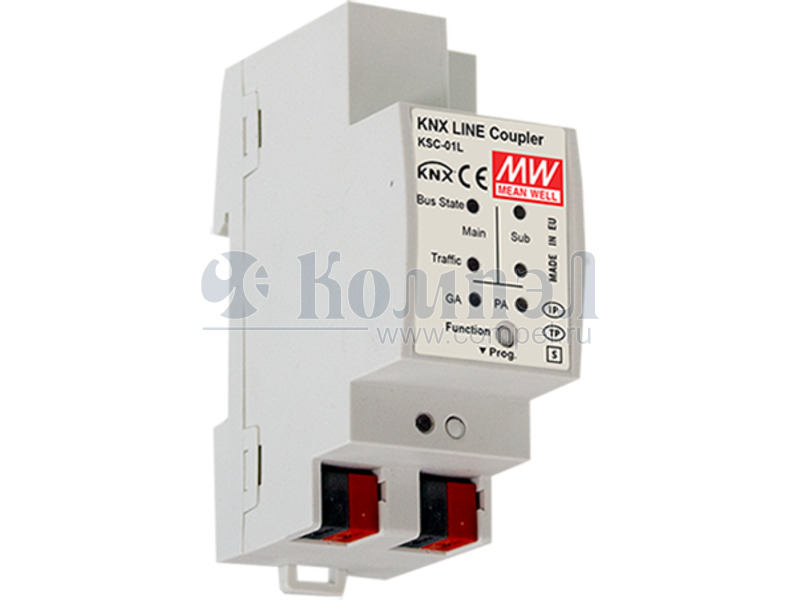

Внешний вид KSC-01L

Технические характеристики

показать свернуть
Тип аксессуара
Описание KNX TP линейный соединитель/ретранслятор
Серии совместимых моделей
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
KSC KNX LINE Coupler series Made in EU Data secure (KSC-02L only) ■ Features KNX TP Line coupler/Repeater Telegram filtering function Long messages support up to 240 byte APDU Trace the subline traffic Diagnostic functions Manual function 3 years warranty ■ Applications Office lighting Smart home lighting Luxury villas lighting LED indoor lighting Building automation ■ Description The KNX TP Media Coupler KSC works as a KNX line/area coupler to provide a bi-directional data connection between two KNX TP lines/areas. KNX TP main line and KNX TP subline are coupled having a galvanic isolation in between. Using the TP Coupler application, KSC can be used as a KNX TP line coupler to connect several KNX TP lines but also as a KNX TP area coupler to connect several TP areas or different KNX TP installation systems via a TP Backbone. Telegram filtering is accomplished according to the installation place in the hierarchy and according to the built-in filter tables for group communication. For detailed diagnosis all operational modes/states are shown by a duo-LED display. Using the TP Repeater application, KSC is able to extend a KNX TP line providing unfiltered data transfer and galvanic isolation between segments. Up to four-line segments can form a single KNX TP line by connecting three KSC line repeaters. Each line segment requires its own KNX bus power supply unit. To ease commissioning and troubleshooting TP Coupler KSC-01L main sub - + - + - + - + Backbone TP Coupler KSC-01L Area .2 .1 .3 TP Coupler sub - + - + - + - + TP Coupler 1.1 1.1 TP Coupler main 1.0 + + 1.0 - - .1 sub + + 1.0 main - - .2 TP Coupler KSC-01L KSC-01L KSC-01L KSC-01L Line 1 not allowed main - + - sub + main - + - sub + main - + - + - + - + - + - + - + - sub + Line 2 1.2 1.2 1.2 .9 .7 .5 .4 .2 .1 1.2 1.2 1.2 not allowed ■ Order Information Model No. KSC-01L KSC-02L Function KNX classic TP Line coupler/Repeater KNX Secure Line coupler/Repeater Note In Stock By request File Name:KSC series-SPEC 2019-07-24 PDF
Документация на KSC-01L

KSC series.cdr

Дата модификации: 17.02.2020

Размер: 112.2 Кб

3 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
