TE6650N

Mornsun
Isolated Transmitter TExxxxN Series Active high precision isolated transmitter FEATURES Two-port isolation (signal input and signal output) High accuracy of 0.1% Full Scale High linearity of 0.1% Full Scale Isolation test voltage 2kVAC for 60s Low ripple & noise: ≤30mVpp, 20MHz Extremely low temperature coefficient of ≤50PPM/℃ over entire range from -40℃ to +85℃  Compact DIP18 package, si...
развернуть ▼ свернуть ▲

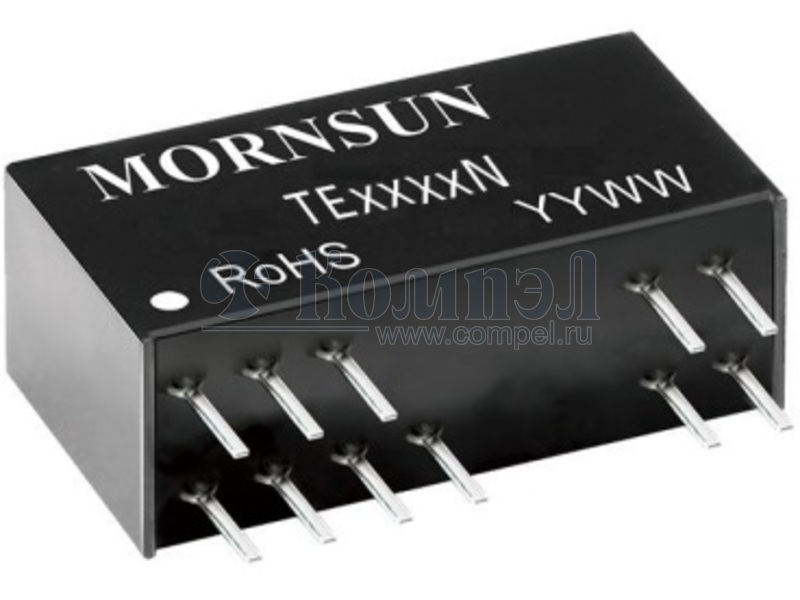

Внешний вид TE6650N

Технические характеристики

показать свернуть
Тип Active high precision isolated transmitter
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Isolated Transmitter TExxxxN Series Active high precision isolated transmitter FEATURES Two-port isolation (signal input and signal output) High accuracy of 0.1% Full Scale High linearity of 0.1% Full Scale Isolation test voltage 2kVAC for 60s Low ripple & noise: ≤30mVpp, 20MHz Extremely low temperature coefficient of ≤50PPM/℃ over entire range from -40℃ to +85℃  Compact DIP18 package, size 26 x 9.5 x 12.5mm  ESD protection (IEC/EN61000-4-2 Contact ±4kV with performance perf. Criteria B)       RoHS EN 62368-1 The TExxxxN series is a high precision isolated transmitter with an inner high efficiency isolated micro-power source. It can provide isolation power to peripheral circuit at the same time of providing power to internal signal processing circuit. The adopted electromagnetic isolation technology has a much higher accuracy and a lower temperature drift in comparison with photo/opto-coupler isolators. They have a two-terminal isolation from signal input/power output to signal output/power input. The series with external functions for zeros and full adjustment via potentiometers (Offset/Gain) offers a convenient way for design and adjustment to our customers. Selection Guide Isolated Power Output (VDC) Model Power Supply input Typ.(VDC) Input Signal Output Signal TE5534N 24V 0-10V 0-10V 15V TE5544N 15V 0-10V 0-10V 15V TE5554N 12V 0-10V 0-10V 15V TE5634N 24V 0-10V 0-5V 15V TE6634N 24V 0-5V 0-5V 15V TE6644N 15V 0-5V 0-5V 15V TE6650N 12V 0-5V 0-5V None TE6654N 12V 0-5V 0-5V 15V TE6664N 5V 0-5V 0-5V 15V TE1533N 24V 4-20mA 0-10V 24V TE1530N 24V 4-20mA 0-10V None TE1550N 12V 4-20mA 0-10V None TE1633N 24V 4-20mA 0-5V 24V TE1630N 24V 4-20mA 0-5V None TE1650N 12V 4-20mA 0-5V None TE1660N 5V 4-20mA 0-5V None TE1430N 24V 4-20mA 1-5V None TE1433N 24V 4-20mA 1-5V 24V TE1450N 12V 4-20mA 1-5V None TE1S34N-2.5 24V 4-20mA 0-2.5V 15V TE1S60N-2.5 5V 4-20mA 0-2.5V None TE1S60N-3.3 5V 4-20mA 0-3.3V None TE1S65N-3.3 5V 4-20mA 0-3.3V 12V TESS64N-1-1 5V 0-1V 0-1V 15V TE2530N 24V 0-20mA 0-10V None TE2650N 12V 0-20mA 0-5V None TE6S6SN-3.3-9 5V 0-5V 0-3.3V 9V 2021.07.28-A/6 Page 1 of 7 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
