SCM9601ATA

Mornsun
Ultra-high voltage start-up controller >Ideal for applications requiring an ultra-wide input voltage range (40VDC to 700VDC) >Low-cost design featuring large starting current
развернуть ▼ свернуть ▲

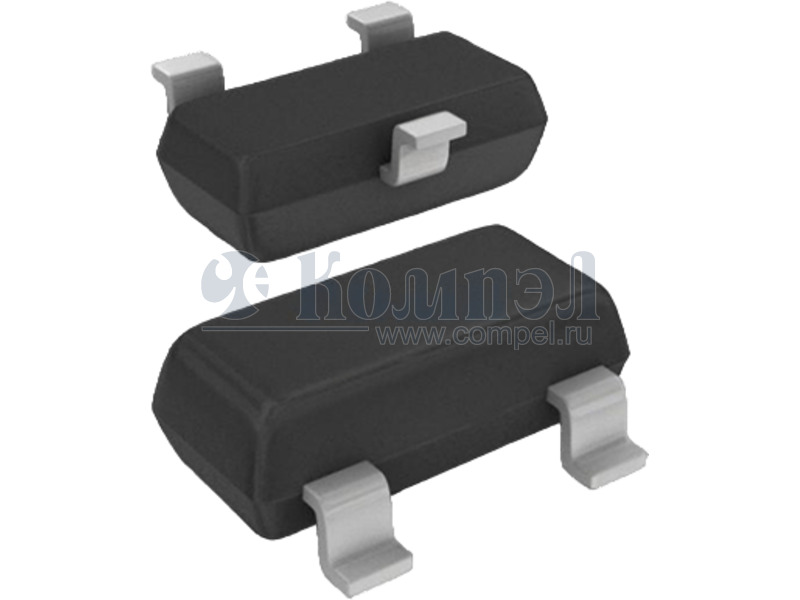

Внешний вид IRLML0030TRPBF

Технические характеристики

показать свернуть
Тип Ultra-high Voltage Start-up Controller
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
SCM9601A Ultra-high Voltage Start-up Controller Package Features Ideal for applications requiring an ultra-wide input voltage range (40VDC to 700VDC) Low-cost design featuring large starting current in small physical package Output short circuit sleep time that can be adjusted through the VDD bypass capacitance Charging voltage limit of VDD     Applications  Used for converters with ultra-wide input voltage of 40VDC to 700VDC. Mechanical package: SOT-23 (see “Ordering information” for details). Functional Description The SCM9601A has a built-in 700V high voltage transistor that can operate with an input voltage from 40VDC up to 700VDC. The output is a constant charging current into the bypass capacitor of the switching power supply to start the controller chip. After the controller started up, the starter continues to deliver power for some time and increases the capacitive load capability of the power supply. In addition, SCM9601A can be used in combination with our SCM9602A to increase the input voltage even further covering a range from 40VDC up to 5,000VDC. To avoid damage to the controller and the power system, the SCM9601A can sense the appropriate fault protection mode if the VDD bypass capacitor is too small or when the power supply output is in short circuit condition. Typical Application Circuit 1 Application shown with an Input Voltage range of 40VDC to 700VDC where SCM9601A is used individually VER.A3 2021.12 Page 1 of 8 MORNSUN Guangzhou Science & Technology Co.,Ltd.reserves the copyright and right of finalinterpretation PDF
Документация на SCM9601ATA

SCM9601A-EN SCM9601S Ultra-high Voltage Start-up Controller

Дата модификации: 27.12.2021

Размер: 1.62 Мб

8 стр.

SCM9601A Ultra-high Voltage Start-up Controller Package Features Ideal for applications requiring an ultra-wide input voltage range (40VDC to 700VDC) Low-cost design featuring large starting current in small physical package Output short circuit sleep time that can be adjusted through the VDD bypass capacitance Charging voltage limit of VDD     Applications  Used for converters with ultra-wide input voltage of 40VDC to 700VDC. Mechanical package: SOT-23 (see “Ordering information” for details). Functional Description The SCM9601A has a built-in 700V high voltage transistor that can operate with an input voltage from 40VDC up to 700VDC. The output is a constant charging current into the bypass capacitor of the switching power supply to start the controller chip. After the controller started up, the starter continues to deliver power for some time and increases the capacitive load capability of the power supply. In addition, SCM9601A can be used in combination with our SCM9602A to increase the input voltage even further covering a range from 40VDC up to 5,000VDC. To avoid damage to the controller and the power system, the SCM9601A can sense the appropriate fault protection mode if the VDD bypass capacitor is too small or when the power supply output is in short circuit condition. Typical Application Circuit Application shown with an Input Voltage range of 40VDC to 700VDC where SCM9601A is used individually VER.A2 2019.07 Page 1 of 8 PDF
Документация на SCM9601ATA

eng930 Keywords:

Дата модификации: 25.12.2019

Размер: 958.9 Кб

8 стр.

    Публикации 1

    показать свернуть
    07 февраля 2020
    новость

    ШИМ-контроллеры и трансформаторы Mornsun для простых источников питания

    Компания Mornsun – производитель модульных источников питания – имеет в ассортименте и набор основных компонентов для построения несложных обратноходовых (flyback) AC/DC–преобразователей, которые могут существенно упростить тракт... ...читать
