L-793ID

Kingbright
LED, 8MM, HE-RED; LED / Lamp Size:8mm; Colour, LED:HE Red; Luminous Intensity, Typ:150mcd; Angle, Viewing:50°; Current, Forward If:30mA; Voltage, Vf Max:2.5V; Temperature, Operating Range:-40°C to +85°C; Case Style:Radial; Current, If Luminous Intensity:20mA; Current, If Max:30mA; Depth, Lead Cross-section:0.5mm; Diameter, External:8mm; Diameter, Lead:0.5mm; LED Colour Presentation:; Length / Height, External:11mm; Length, Lead:25.5mm; Lens Type:Tinted Diffused; Material:GaAsP/GaP; Mounting Type:Leaded, Thru Hole; Pitch, Lead:2.54mm; Voltage, PIV Max:5V; Voltage, Vf Typ:2V; Wavelength, Peak:625nm; Wavelength, Typ:625nm; Width, Lead Cross-section:0.5mm
развернуть ▼ свернуть ▲

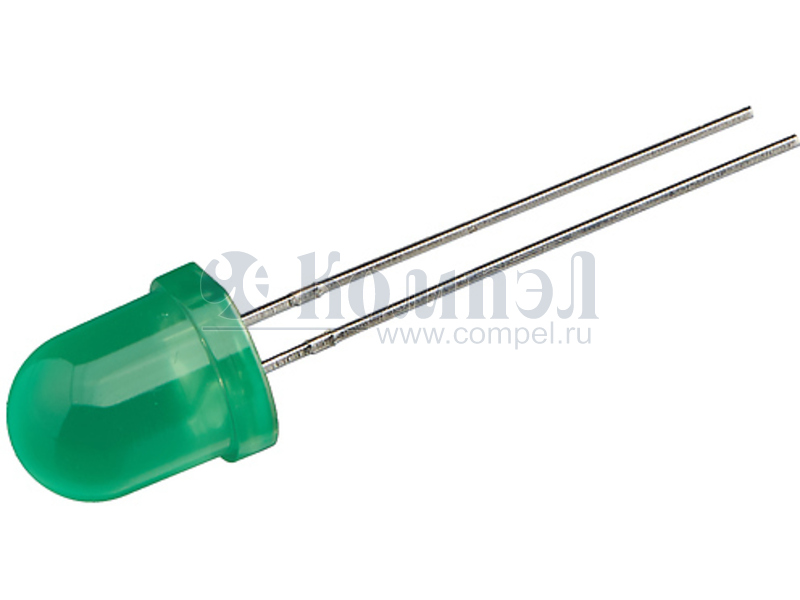

Внешний вид L-793ID

Технические характеристики

показать свернуть
Цвета свечения
Количество цветов в корпусе
Длина волны 1 цвета 625
Сила света 1 кристалла
Угол по горизонтали
Угол по вертикали
Тип корпуса
Тип линзы
Схема включения
Размер 8×8×11 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 2

показать свернуть
Тип Наименование Корпус Упаковка i Цвет N λ1 Длина волны 2 λ3 Iv1 Iv2 Iv3 Tц Поток U Pик αX αY CIE x CIE y Корпус Линза Схема T раб Примечания Карточка
товара
P- L-793GD (KGB)

— 200 шт 568 — — — — — — — — — — — — — — —
P- FYL-8013ED1B (FORYARD)

— 300 шт

 623 — — — — — — — — — — — — —

Файлы 2

показать свернуть
L-793ID 8mm Round LED Lamp DESCRIPTION  PACKAGE DIMENSIONS The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode FEATURES     8mm diameter big lamp Reliable and rugged Long life - solid state reliability RoHS compliant t h APPLICATIONS      Status indicator Illuminator Signage applications Decorative and entertainment lighting Commercial and residential architectural lighting g in g i r b K Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the leads emerge from the package. 4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. SELECTION GUIDE Part Number L-793ID Emitting Color (Material) ■ High Efficiency Red Iv (mcd) @ 20mA [2] Viewing Angle [1] Lens Type Min. Typ. 50 100 Red Diffused 2θ1/2 30° (GaAsP/GaP) *30 *60 Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. * Luminous intensity value is traceable to CIE127-2007 standards. © 2021 Kingbright. All Rights Reserved. Spec No: DSAC1448 / 1101007305 Rev No: V.14A Date: 06/18/2021 Page 1 / 5 PDF
Документация на L-793ID

L-793ID(Ver.14A)

Дата модификации: 18.06.2021

Размер: 969.9 Кб

5 стр.

8mm ROUND LED LAMP L-793ID HIGH EFFICIENCY RED Features Description !8mm DIAMETER BIG LAMP. The High Efficiency Red source color devices are !WIDE VIEWING ANGLE. made with Gallium Arsenide Phosphide on Gallium !I.C. COMPATIBLE. Phosphide Orange Light Emitting Diode. !RELIABLE AND RUGGED. ! LONG LIFE - SOLID STATE RELIABILITY. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the lead emerge package. 4. Specifications are subject to change without notice. SPEC NO: DSAC1448 APPROVED : J. Lu REV NO: V.1 CHECKED :Allen Liu DATE:DEC/11/2002 DRAWN:D.L.HUANG PAGE: 1 OF 3 PDF
