41F-1Z-C4-1

Hongfa
41F Series Cage Spring Relay Socket ORDERING INFORMATION 41F -1Z -C4 -1 Type 1Z: 1 Form C Contact arrangement Termination & mounting C4: Cage spring terminal 1: (12-24)VAC/DC 2: (48-60)VAC/DC Built in module 3: (110-125 VAC/DC 4: (220-240 VAC/DC 5: (6-24 VDC File No.:E253370 CHARACTERISTICS 41F-1Z-C4-1 250VAC 6A -40℃~70℃ Min. Relay's Polarity of Screw Wire Unit Applicable Input ...
развернуть ▼ свернуть ▲

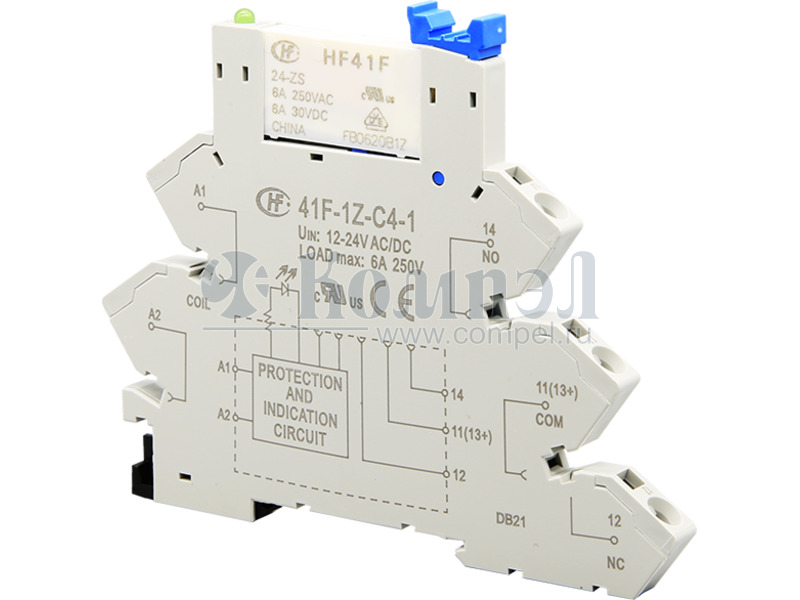

Внешний вид серии 41F-C4

Технические характеристики

показать свернуть
Примечания Relay socket for relays HF41F, Cage spring terminal
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
41F Series Cage Spring Relay Socket ORDERING INFORMATION 41F -1Z -C4 -1 Type 1Z: 1 Form C Contact arrangement Termination & mounting C4: Cage spring terminal 1: (12-24)VAC/DC 2: (48-60)VAC/DC Built in module 3: (110-125 VAC/DC 4: (220-240 VAC/DC 5: (6-24 VDC File No.:E253370 CHARACTERISTICS 41F-1Z-C4-1 250VAC 6A -40℃~70℃ Min. Relay's Polarity of Screw Wire Unit Applicable Input weight package Torque Strip qty. Rated Voltage Voltage Length No (12~24)VAC/DC (12~24)VDC requirement — 7mm Approx.25g 10 41F-1Z-C4-2 250VAC 6A -40℃~70℃ (48~60)VAC/DC 41F-1Z-C4-3 250VAC 6A -40℃~55℃ (110~125)VAC/DC 41F-1Z-C4-4 250VAC 6A -40℃~55℃ (220~240)VAC/DC 41F-1Z-C4-5 250VAC 6A -40℃~70℃ Type Nominal Nominal Ambient Voltage Current Temperature Input Voltage (6~24)VDC No (48~60)VDC requirement — 7mm Approx.24g 10 60VDC No requirement — 7mm Approx.25g 10 60VDC No requirement — 7mm Approx.25g 10 (6~24)VDC Requirement — 7mm Approx.23g 10 Notes: When the 41F-1Z-C4-1 socket is applied to the relay of 12VDC nominal voltage,the relay of which pick-up voltage =70% nominal voltage should be required and the special order of relay allowed. 41F-1Z-C4-4 is not allowed in continuous electricity conditions. OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT Socket (If need accesscry,please order with type.) 41F-1Z-C4-1/2/3/4 Outline Dimensions Accessory Available PCB Layout 76.6 Marker： 41F-M 41F-M1 Retainer： 41F-J1(blue) 41F-J1R(red) 41F-J1B(black) Plug-in module： 41F-S Spring-loaded terminal DIN rail mounting With finger protection device 73.2 6.2 (Top View) Next page HONGFA RELAY ISO9001, IATF16949 , ISO14001, ISO45001, IECQ QC 080000, ISO/IEC 27001 CERTIFIED 2023 Rev. 1.00 001 PDF
