P5

Forward
P C 14 9 5 US E158859 R50044271 Features DIL pitch terminals. High sensitivity :0.14W or 0.10W nominal power. Conforms to FCC Part 68 1.5kV surge and dielectric 1000VAC. Monostable, single or double coil latching relay . Application for telecommunication equipment, office equipment, security alarm systems, measuring instruments, medical monitoring equipment, audio visual equipment, flight ...
развернуть ▼ свернуть ▲

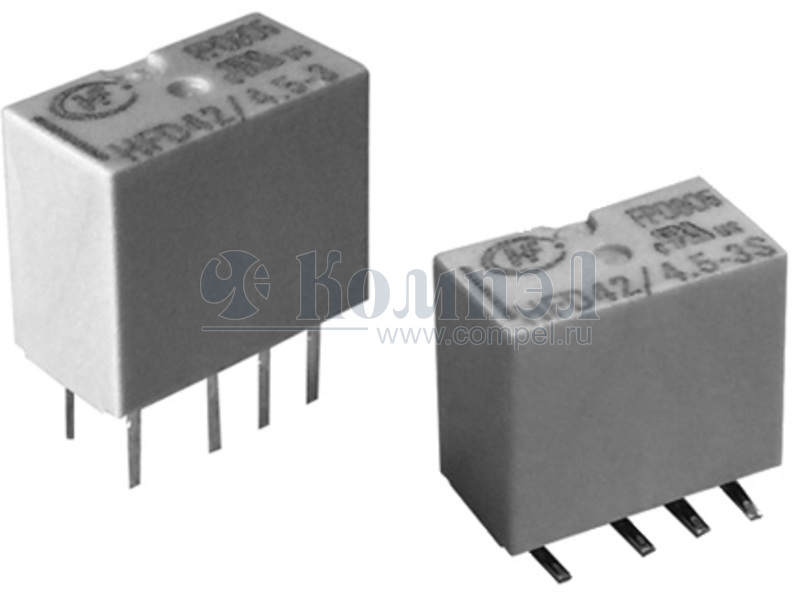

Внешний вид серии P

Технические характеристики

показать свернуть
Тип контактов
Номинальное напряжение катушки
Тип тока катушки
Мощность катушки максимальная
Номинальный ток коммутации
Коммутируемое напряжение DC (макс)
Коммутируемое напряжение AC (пиковое)
Напряжение изоляции катушка-контакты
Рабочая температура
Размер 14×9×5 мм
Способ подключения выводов
Применение
Примечания
Магнитная система катушки
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 24

показать свернуть
Тип Наименование Корпус Упаковка i Конфиг Uкатушки AC-DC Pупр(max) Iкомм U dc U ac Изоляция T раб Монтаж Особенности Применение Примечания Тип колодки Магнитная система Семейство Карточка
товара
A- HFD2/005-S-D (HONGFA)

— в линейках 25 шт Power/Signal Relay, DPDT, Momentary, 0.03A (Coil), 5VDC (Coil), 150mW (Coil), 3A (Contact), 220VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount — —
A- HFD2/005-S-L2-D (HONGFA)

— 1 шт Power/Signal Relay, DPDT, Latched, 0.03A (Coil), 5VDC (Coil), 150mW (Coil), 3A (Contact), 220VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount — —
A- HFD3/5 (HONGFA)

— в линейках 40 шт Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.028A (Coil), 10VDC (Coil), 140mW (Coil), 4A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output — —
A- HFD4/5 (HONGFA)

— в линейках 50 шт Power/Signal Relay, DPDT, Momentary, 0.028A (Coil), 5VDC (Coil), 140mW (Coil), 2A (Contact), 220VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount — —
A- HFD4/5-LSR (HONGFA)

— в ленте 900 шт — — —
A- HFD4/5-SR (HONGFA)

— в ленте 900 шт Power/Signal Relay, DPDT, Momentary, 0.028A (Coil), 5VDC (Coil), 140mW (Coil), 2A (Contact), 220VDC (Contact), DC Input, AC/DC Output, Surface Mount-Straight — —
A- G5V2H15DC (OMRON)

— в линейках 500 шт — — — —
A- TRSB-5VDC-SB-L15-R (TS)

— в линейках 25 шт — — —
A- P-5V (FORWARD)

— в линейках 25 шт

 — — —
A- PL-5 (FORWARD)


PL5 (FORWARD) 		— в линейках 25 шт — — —
A- PS-5V (FORWARD)

— — — —
A- HFD2/005-M-L2 (HONGFA)

— — AgPd/Ag + gold plated, Plastic sealed — —
A- HFD27/005-H (HONGFA)

— в линейках 25 шт — — —
A- HFD27/005-M (HONGFA)

— 1 шт — — —
A- HFD27/005-S (HONGFA)

— в линейках 620 шт Power/Signal Relay, DPDT, Momentary, 0.04A (Coil), 5VDC (Coil), 200mW (Coil), 2A (Contact), 120VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount — —
A- HFD3/005 (HONGFA)

— 40 шт — AgNi + Au plated, Plastic sealed — —
A- HFD3/005-S (HONGFA)

— — AgNi + Au plated, Plastic sealed — —
A- JRC-19F-2C-5VDC-0.2 (FORWARD)

—

 — — — —
A- HFD3/5-L1 (HONGFA)

— в линейках 40 шт — — —
A- HFD3/5-L1S1R (HONGFA)

— — — —
A- HFD3/5-L1SR (HONGFA)

— — — —
A- HFD3/5-L2 (HONGFA)

— 1 шт — — —
A- HFD3/5-L2S1R (HONGFA)

— — — —
A- HFD3/5-L2SR (HONGFA)

— Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.04A (Coil), 10VDC (Coil), 200mW (Coil), 4A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight — —

Файлы 1

показать свернуть
P C 14 9 5 US E158859 R50044271 Features DIL pitch terminals. High sensitivity :0.14W or 0.10W nominal power. Conforms to FCC Part 68 1.5kV surge and dielectric 1000VAC. Monostable, single or double coil latching relay . Application for telecommunication equipment, office equipment, security alarm systems, measuring instruments, medical monitoring equipment, audio visual equipment, flight simulator, sensor control. Ordering Information P L 12 W 1 2 3 4 1 Part number P 2 Operating function NIL: Single Side Stable L:1 Coil Latching; K:2 Coil Latching 3 Coil rated voltage(V) DC:3,4.5,5,6,9,12,24 4 Contact material NIL: AgPd W: AgNi Contact Data Contact Arrangement Contact Material Contact Rating (Resistive) Max. Switching Power Max. Switching Voltage Contact Resistance 2C(DPDT(B-M)) (Bifurcated Crossbar) AgPd(Au plated ) AgNi(Au plated 1A,2A/30VDC; 0.5A/125VAC 60W 62.5VA 220VDC 250VAC 50m Operation Life 2 10 5 (DC AgPd);1 10 5(DC AgNi) 1 10 5(AC) 1 10 8 Electrical Mechanical CAUTION: Relays previously tested or used above 10mA resistive at 6V maximum use in low level applications. Min. Switching Load 0.01mA/10mV(Reference Value) M ax. Swit ching Curr ent:2A Item 4.12 of IEC 61810-7 Item 4.30 of IEC 61810-7 Item 4.31 of IEC 61810-7 DC or peak AC open circuit are not recommended for subsequent Coil Parameter Dash numbers Coil voltage VDC Rated P-003 P-004 P-005 P-006 P-009 P-012 P-024 Max. Coil resistance 10% 3 4.5 5 6 9 12 24 7.5 11.25 12.5 15.0 22.5 30.0 48.0 64.3 144.6 178 257 579 1028 2880 2.25 3.38 3.75 4.50 6.75 9.00 18.0 0.3 0.45 0.5 0.6 0.9 1.2 2.4 Set Reset(Max) 3 4.5 5 6 9 12 24 8.7 13.0 14.5 17.4 26.1 34.8 57.6 90 202.5 250 360 810 1440 3840 2.25 3.38 3.75 4.50 6.75 9.00 18.0 -2.25 -3.38 -3.75 -4.50 -6.75 -9.00 -18.0 Set Reset(Max) 2.25 3.38 3.75 4.50 6.75 9.00 18.0 2.25 3.38 3.75 4.50 6.75 9.00 18.0 1 Coil Latching PL-003 PL-004 PL-005 PL-006 PL-009 PL-012 PL-024 2 Coils Latching PK-003 PK-004 PK-005 PK-006 PK-009 PK-012 PK-024 Pick-up voltage Drop-out voltage Coil VDC(max) VDC(min) power (75%of rated (10% of rated W voltage ) voltage) 3 4.5 5 6 9 12 24 Set Coil 6 9 10 12 18 24 36 45 101 125 180 405 720 1920 Reset Coil 45 101 125 180 405 720 1920 0.14 0.14 0.14 0.14 0.14 0.14 0.20 0.10 0.10 0.10 0.10 0.10 0.10 0.15 Operate time ms Release time ms Approx.2 Approx.1 Set Reset Approx.2 Approx.2 Set 0.20 0.20 0.20 0.20 0.20 0.20 0.30 Approx.2 Reset Approx.2 CAUTION: 1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay. 2.Pickup and release(reset) voltage are for test purposes only and are not to be used as design criteria. 3.When latching relays are installed in equipment, the set and reset coil should not be powered simultaneously. Coil should not be pulsed with less than the nominal coil voltage and pulse width should be a minimum of three times the specified operate time of the relay. If these conditions are not followed, it is possible for the relay to be in the magnetically neutral position . PDF
Документация на семейство P

ͼÐÎ3

Дата модификации: 20.04.2022

Размер: 149 Кб

2 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
