PJ-48V50WBNA

Delta
TECHNICAL DATASHEET PJ Open Frame Power Supply 48V 50W 1 Phase / PJ-48V50W□NA PJ Highlights & Features • • • • • • • Universal AC input voltage range (85Vac – 264Vac) Low Inrush Current / Low Leakage Current High efficiency and PF factor to conserve energy Conforms to harmonic current IEC/EN 61000-3-2, Class A Conformal coating on PCBA to protect against chemical and dust pollutants Vers...
развернуть ▼ свернуть ▲

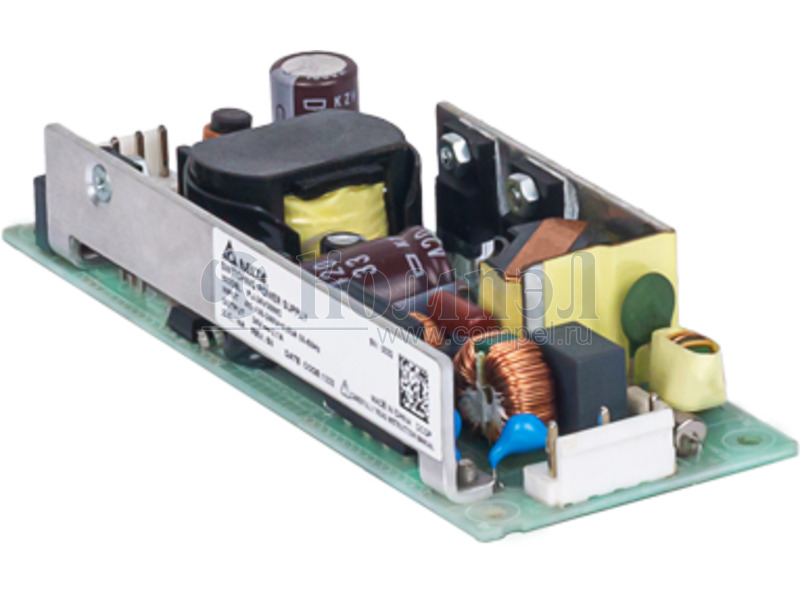

Внешний вид PJ-48V50WBNA

Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Конструктивное исполнение
Типы защиты перенапряжение, перегрузка, перегрев, КЗ
Количество выходов
Исполнение
Входное напряжение AC
Размер 132×50×26.6 мм
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
A+ LO65-20B48MU (MORNSUN)

—

 КЗ, перегрузка, перенапряжение — — — — — — AC-DC Regulated Power Supply Module

Файлы 2

показать свернуть
TECHNICAL DATASHEET PJ Open Frame Power Supply 48V 50W 1 Phase / PJ-48V50W□NA PJ Highlights & Features • • • • • • • Universal AC input voltage range (85Vac – 264Vac) Low Inrush Current / Low Leakage Current High efficiency and PF factor to conserve energy Conforms to harmonic current IEC/EN 61000-3-2, Class A Conformal coating on PCBA to protect against chemical and dust pollutants Versatile configuration options: Open Frame, L Frame, Enclosed Long life capacitors Safety Standards CB Certified for worldwide use Model Number: Unit Weight: PJ-48V50W □NA Open Frame: 0.16 kg (0.35 lb) Enclosed: 0.28 kg (0.62 lb) Dimensions (L x W x H): Open Frame: 132 x 50 x 26.6 mm (5.20 x 1.97 x 1.05 inch) Enclosed: 162 x 60 x 36 mm (6.38 x 2.36 x 1.42 inch) General Description The PJ series of Open Frame Power Supply comes with universal AC input at 85Vac to 264Vac. Other features include low leakage / Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. The built-in active PFC provides PF > 0.97 and fulfills Harmonic Current Emission according to IEC/EN 61000-3-2. The PJ series is certified for EMC standards according to EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment and EMS according to EN 55024. In addition, the detachable input and output connectors are from JST and only recognized Japanese capacitors are used. Metal chassis and case cover are available as options for different installation preferences. The PJ series conforms to major international safety standards according to EN/UL 62368-1 standards and are fully compliant with RoHS Directive for environmental protection. Model Information PJ Open Frame Power Supply Model Number Input Voltage Range Rated Output Voltage Rated Output Current PJ-48V50W □NA 85-264Vac 48Vdc 1.10A Model Numbering CC Code PJ – 48V PJ Series Output Voltage Output Power 1 50W □ N Product Type B - Open Frame L - L Frame C - Enclosed Remote ON/OFF Function Delta Standard N - No Remote ON/OFF All parameters are specified at 25°C ambient and AC input unless otherwise indicated. www.DeltaPSU.com (October 2020, Rev. 04) A PDF
Документация на PJ-48V50WBNA

PJ-48V50W (Rev.04, October 2020) Technical Datasheet

Дата модификации: 17.11.2020

Размер: 1.12 Мб

11 стр.

TECHNICAL DATASHEET PJ Open Frame Power Supply 48V 50W 1 Phase / PJ-48V50W□NA PJ Highlights & Features – – – – – – – Universal AC input voltage range (85Vac – 264Vac) Low Inrush Current / Low Leakage Current High efficiency and PF factor to conserve energy Conforms to harmonic current IEC/EN 61000-3-2, Class A Conformal coating on PCBA to protect against chemical and dust pollutants Versatile configuration options: Open Frame, L Frame, Enclosed Long life capacitors Safety Standards CB Certified for worldwide use Model Number: Unit Weight: PJ-48V50W □NA 0.16 kg (Open Frame) 0.28 kg (Enclosed) Dimensions (L x W x D): 132 x 50 x 26.6 mm (Open Frame) 162 x 60 x 36 mm (Enclosed) General Description The PJ series of Open Frame Power Supply comes with universal AC input at 85Vac to 264Vac. Other features include low leakage / Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. The built-in active PFC provides PF > 0.97 and fulfills Harmonic Current Emission according to IEC/EN 61000-3-2. The PJ series is certified for EMC standards according to EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN 55022 for Industrial Technology Equipment (ITE) radio-frequency equipment and EMS according to EN 55024. In addition, the detachable input and output connectors are from JST and only recognized Japanese capacitors are used. Metal chassis and case cover are available as options for different installation preferences. The PJ series conforms to major international safety standards according to EN/UL 60950-1 standards and are fully compliant with RoHS Directive 2011/65/EU for environmental protection. Model Information PJ Open Frame Power Supply Model Number Input Voltage Range Output Voltage Output Current PJ-48V50W □NA 85-264Vac 48Vdc 1.10A Model Numbering CC Code PJ – 48V PJ Series Output Voltage Output Power 1 50W □ N Product Type B - Open Frame L - L Frame C - Enclosed Remote ON/OFF Function Delta Standard N - No Remote ON/OFF All parameters are specified at 25°C ambient unless otherwise indicated. www.DeltaPSU.com (November 2014, Rev. 02) A PDF
Документация на PJ-48V50WBNA

PJ-48V50W (November 2014, Rev. 02) Technical Datasheet

Дата модификации: 14.11.2014

Размер: 1001.8 Кб

11 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
