CH603ATB

Cosemi
Cosemitech CH603/CH604/CH605 Automotive Product Group This is advanced information on a new product now in development or undergoing evaluation. Details are subject to change without notice and Cosemitech assumes no obligation for future manufacture of this product. Contact Cosemitech for the latest status. REV 0.9 FEATURES and FUNCTIONAL DIAGRAM • • • • • • • • • • • • • PACKAGE ⚫ Powe...
развернуть ▼ свернуть ▲


Технические характеристики

показать свернуть

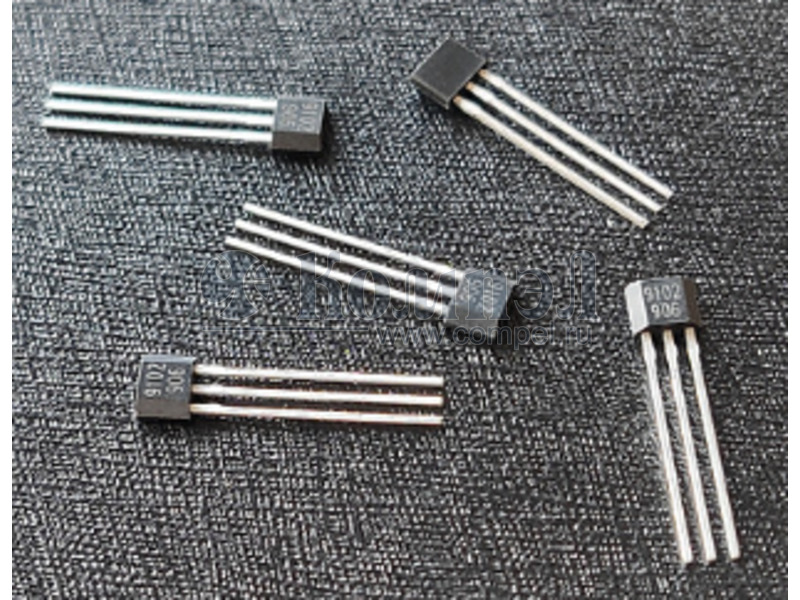

Корпус TO92S
Тип датчика
Рабочая температура
Монтаж
Применение
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 3

показать свернуть
Тип Наименование Корпус Упаковка i Тип T раб Монтаж Применение Примечание Карточка
товара
P= MT9102A (MAGNTEK)

TO-92-3 1000 шт Датчик Холла линейный с ратиометрическим выходом — —
P= CH604ATB (COSEMI)

TO92S 1000 шт

 —
P= CHI612TB03125S (COSEMI)

TO92S 10 шт

 — — — — —

Файлы 1

показать свернуть
Cosemitech CH603/CH604/CH605 Automotive Product Group This is advanced information on a new product now in development or undergoing evaluation. Details are subject to change without notice and Cosemitech assumes no obligation for future manufacture of this product. Contact Cosemitech for the latest status. REV 0.9 FEATURES and FUNCTIONAL DIAGRAM • • • • • • • • • • • • • PACKAGE ⚫ Power consumption of 4 mA at 5 VDC for energy efficiency Single Current Sinking or Current Sourcing Output Linear output for circuit design flexibility Ratiometric Rail to Rail Linear Output Precise Sensitivity and Temperature Compensation Wide Operating Voltage Range: Supply Voltage 3.0~15V Sensitivity at 5V: TO-92S 3.3mV/Gauss (CH603) 2.5mV/Gauss (CH604) 5.0mV/Gauss (CH605) Specified Operating Temperature Range: From -40℃~150℃ Responds to either positive or negative gauss SOT-23-3L SOT-89-3L Quad Hall sensing element for stable output Lead Free Package: Flat TO-92, SOT-89-3L, SOT-23-3L High ESD Protection APPLICATIONS RoHS Compliant Automotive, Industrial, Home, 2011/65/EU appliances, Current sensing Speed Detection Position Detection Magnetic Encoder Solid-State Switch Ferrous metal sensing Liquid level sensing Vibration sensing Weight sensing DESCRIPTION The CH603/CH604/CH605 family is high performance ratiometric linear hall effect sensor, produced with Bipolar technology; it is high performance small versatile linear Hall-effect devices which are operated by the magnetic field from a permanent magnet or an electromagnet. The ratiometric output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic field. The CH603/CH604/CH605 family has a quiescent output voltage that is 50% of the supply voltage. The integrated circuitry provides increased temperature stability and sensitivity. The CH603/CH604/CH605 provide high accuracy and temperature compensation. The linear hall sensors have an operating temperature range from -40 to +150℃, appropriate for home appliances, industrial and automotive environments. They respond to either South or North pole. Page 1/10 PDF
Документация на CH603AER

Дата модификации: 21.02.2021

Размер: 635.9 Кб

10 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
