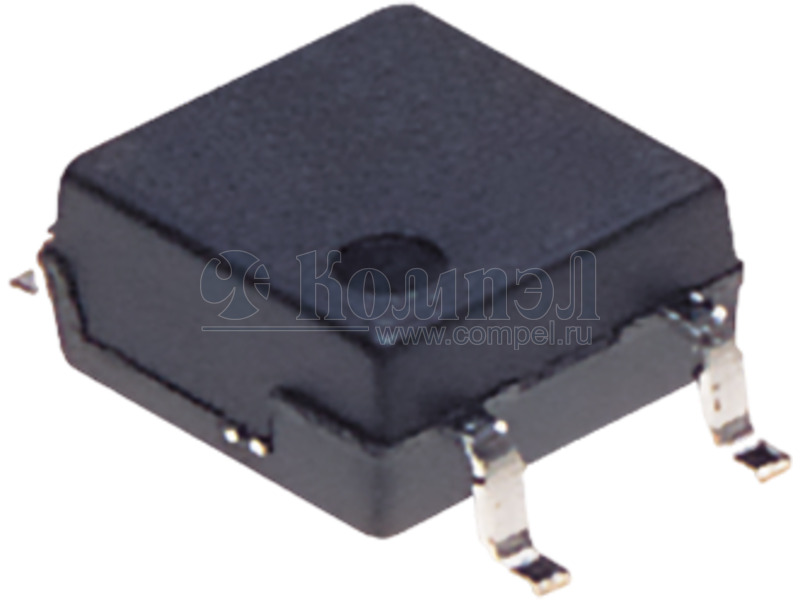

Серия твердотельных реле PhotoMOS™ AQY

Общие характеристики

	Раздел	Реле твердотельные
	Схема коммутации
	Тип входа

Документация на серию PhotoMOS™ AQY

A standard acquisition situation changes with part number. DIP4-pin type with reinforced insulation GE 1 Form A (AQY21❍EH) 4.78 .188 6.4 .252 3.2 4.78 .126 .188 6.4 .252 2.9 .114 (Height includes standoff) mm inch 1 4 2 3 RoHS compliant FEATURES TYPICAL APPLICATIONS 1. Reinforced insulation of 5,000 V More than 0.4 mm internal insulation distance between inputs and outputs. Con-forms to EN41003, EN60950 (reinforced insulation). 2. Controls low-level analog signals PhotoMOS feature extremely low closedcircuit offset voltage to enable control of low-level analog signals without distortion. 3. High sensitivity and low onresistance Can control max. 0.13 A load current with 5 mA input current. Low on-resistance of Typ. 25Ω (AQY210EH). 4. Low-level off state leakage current of max. 1 μA • Modem • Telephone equipment • Electricity, plant equipment • Security equipment • Sensing equipment TYPES Part No. Output rating** I/O isolation voltage AC/DC dual use Package Through hole terminal Packing quantity Surface-mount terminal Tape and reel packing style Picked from the Picked from the 1/2-pin side 3/4-pin side Load voltage Load current 30 V 1,000 mA AQY211EH AQY211EHA AQY211EHAX AQY211EHAZ 60 V 350 V 400 V 600 V 550 mA 130 mA 120 mA 50 mA AQY212EH AQY210EH AQY214EH AQY216EH AQY212EHA AQY210EHA AQY214EHA AQY216EHA AQY212EHAX AQY210EHAX AQY214EHAX AQY216EHAX AQY212EHAZ AQY210EHAZ AQY214EHAZ AQY216EHAZ Reinforced 5,000 Vrms Tube packing style DIP4-pin Tube Tape and reel 1 tube contains: 100 pcs. 1 batch contains: 1,000 pcs. 1,000 pcs. **Indicate the peak AC and DC values. Note: For space reasons, the initial letters of the part number “AQY”, the surface mount terminal shape indicator “A” and the packing style indicator “X” or “Z” are not marked on the device. (Ex. the label for product number AQY211EHAX is 211EH) RATING 1. Absolute maximum ratings (Ambient temperature: 25°C 77°F) Input Output Item LED forward current LED reverse voltage Symbol IF VR Peak forward current IFP Power dissipation Load voltage (peak AC) Continuous load current Pin VL IL AQY211EH(A) AQY212EH(A) AQY210EH(A) 50mA 5V AQY214EH(A) 30 V 1A 75mW 350 V 0.13 A 60 V 0.55 A Ipeak Power dissipation Total power dissipation I/O isolation voltage Pout PT Viso 500mW 550mW 5,000 Vrms Operating Topr –40 to +85°C –40 to +185°F Storage Tstg –40 to +100°C –40 to +212°F 3A 1.5 A 0.4 A –1– Remarks f =100 Hz, Duty factor = 0.1% 1A Peak load current Ambient temperature AQY216EH(A) 400 V 0.12 A 0.3 A 600 V 0.05 A 0.15 A Peak AC, DC 100 ms (1 shot), VL= DC (Non-icing at low temperatures) ASCTB126E 201703-T  PDF

Документация на AQY210EHAX

GE 1 Form A (AQY21*EH) ASCTB126E 201703-T

Дата модификации: 23.03.2017

Размер: 171.7 Кб

5 стр.

• найти PhotoMOS™ AQY.pdf

Товары серии PhotoMOS™ AQY

Наименование	i	Упаковка	Корпус	Uвх	Выход	Uкомм(DC)	Rоткр	IDC	ISOL
AQY210EH (PAN)			DIP4
AQY210EHA (PAN)		1 шт	SMD4
AQY210EHAX (PAN)			SMD4
AQY210EHAZ (PAN)			SMD4
AQY210HL (PAN)			DIP4
AQY210HLA (PAN)			SMD4
AQY210HLAX (PAN)			—
AQY210HLAZ (PAN)			—
AQY210KS (PAN)		1 шт	—						—
AQY210KSX (PAN)			—
AQY210KSZ (PAN)		1 шт	—
AQY210LS (PAN)			—
AQY210LSX (PAN)			—
AQY210LSZ (PAN)			—
AQY210S (PAN)		в линейках 100 шт	—
AQY210S1Y (PAN)			—						—
AQY210SX (PAN)		в ленте 1000 шт	—
AQY210SZ (PAN)		1 шт	—
AQY212EH (PAN)			DIP-4
AQY212EHA (PAN)		1 шт	SMD4
AQY212EHAX (PAN)			SMD4
AQY212EHAZ (PAN)			—
AQY212FG2S (PAN)		1 шт	—
AQY212FG2SX (PAN)			—
AQY212FG2SZ (PAN)			—
AQY212GH (PAN)			DIP4
AQY212GHA (PAN)		в линейках 13 шт	SMD4
AQY212GHAZ (PAN)			—
AQY212GS (PAN)		1 шт	—
AQY212GSX (PAN)		в ленте 92 шт	—
AQY212GSZ (PAN)			SOP4
AQY212S (PAN)		в ленте 1000 шт	—						—
AQY214EH (PAN)			DIP4
AQY214EHA (PAN)			SMD4
AQY214EHAX (PAN)			SMD4
AQY214EHAZ (PAN)			SMD4
AQY214HL (PAN)			—						—
AQY214HLA (PAN)			—						—
AQY214HLAX (PAN)			—						—
AQY214HLAZ (PAN)			—						—
AQY214LS (PAN)			—						—
AQY214LSX (PAN)			—						—
AQY214LSZ (PAN)			—						—
AQY214S (PAN)		в линейках 100 шт	—
AQY214SX (PAN)			SOP4
AQY214SZ (PAN)			—
AQY221FN2V (PAN)			SMD4						—
AQY221FN2VW (PAN)			—
AQY221FN2VY (PAN)			—
AQY221FR2V (PAN)			SMD4						—
AQY221FR2VW (PAN)			—
AQY221FR2VY (PAN)			SMD4
AQY221N1S (PAN)		1 шт	—
AQY221N1SX (PAN)			—						—
AQY221N1SZ (PAN)			—
AQY221N2M1Y (PAN)			SMD4						—
AQY221N2MW (PAN)			—
AQY221N2MY (PAN)			SMD4
AQY221N2S (PAN)		20 шт	—
AQY221N2SX (PAN)		30 шт	—
AQY221N2SY (PAN)			—						—
AQY221N2SZ (PAN)			—
AQY221N2V (PAN)		в линейках 150 шт	SMD4						—
AQY221N2V1W (PAN)			—						—
AQY221N2V1Y (PAN)			SMD4						—
AQY221N2VW (PAN)			—
AQY221N2VY (PAN)		1 шт	SMD4
AQY221N3M (PAN)		1 шт	SMD4						—
AQY221N3MW (PAN)			—
AQY221N3MY (PAN)		в ленте 3500 шт	SMD4
AQY221N3S (PAN)			—						—
AQY221N3SX (PAN)			—						—
AQY221N3SZ (PAN)			—						—
AQY221N3V (PAN)		1 шт	SMD4						—
AQY221N3V1Y (PAN)			SMD4						—
AQY221N3VY (PAN)		1 шт	SMD4
AQY221R2M1Y (PAN)			SMD4						—
AQY221R2MW (PAN)			SMD4
AQY221R2MY (PAN)			SMD4
AQY221R2S (PAN)			—
AQY221R2SX (PAN)			—
AQY221R2SZ (PAN)			—
AQY221R2V (PAN)		150 шт	SMD4						—
AQY221R2VW (PAN)			—
AQY221R2VY (PAN)			SMD4
AQY221R4V (PAN)			SMD4						—
AQY222R1S (PAN)		4 шт	SOP4						—
AQY224NS (PAN)		1 шт	—						—
AQY224NSX (PAN)			—						—
AQY224NSZ (PAN)			—						—
AQY225NS (PAN)			—						—
AQY225NSX (PAN)			—						—
AQY225NSZ (PAN)			—						—
AQY225R1S (PAN)		1 шт	—
AQY225R2S (PAN)			—
AQY225R2V (PAN)		1 шт	SMD4						—
AQY232SZ (PAN)			—
AQY272 (PAN)		1 шт	DIP4
AQY272A (PAN)			SMD4
AQY272AX (PAN)			SMD4
