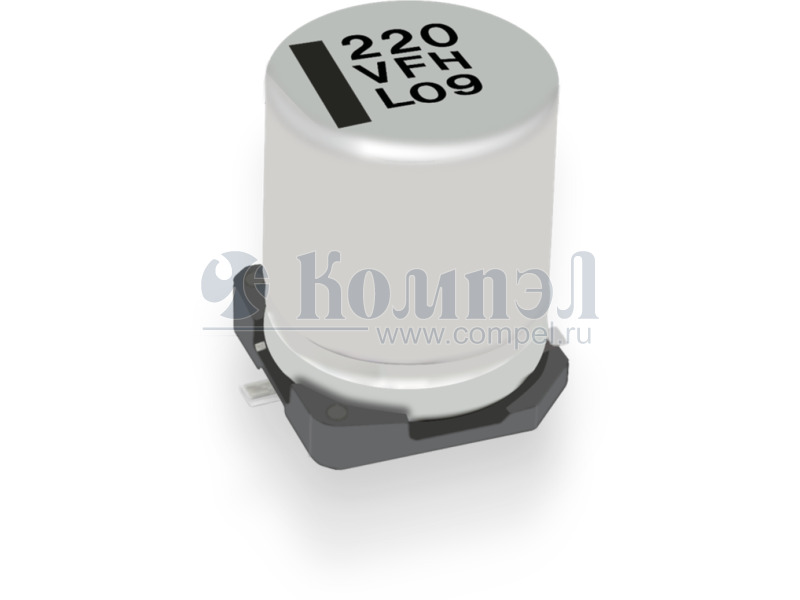

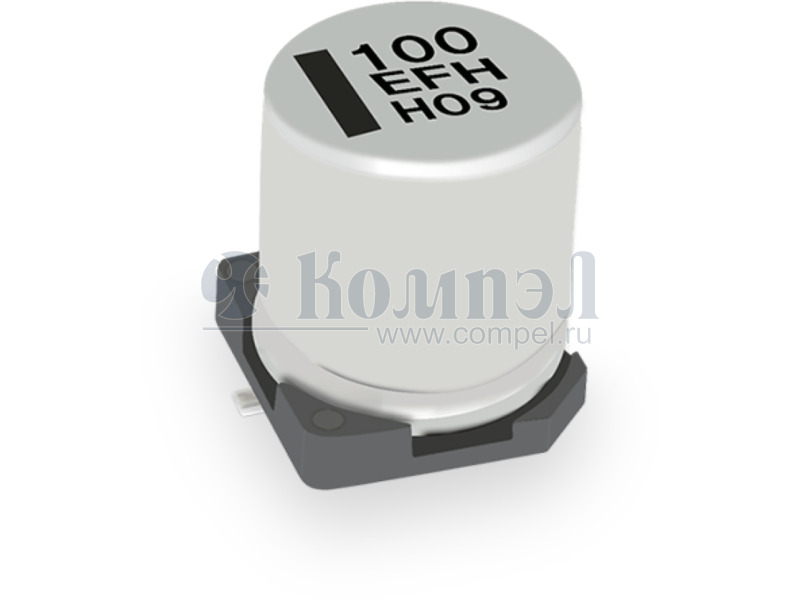

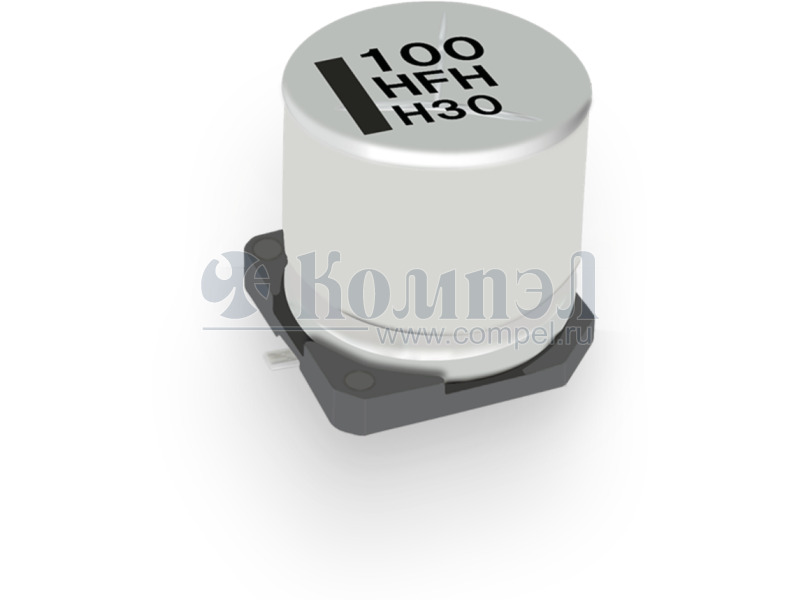

Серия алюминиевых конденсаторов FH_SMD

Panasonic Industrial Europe GmbH

Общие характеристики

 Раздел Алюминиевые конденсаторы
Допуск по ёмкости
Температура рабочая
Способ монтажа

Документация на серию FH_SMD

Aluminum Electrolytic Capacitors Surface Mount Type Halogen-free FH series High temperature Lead-Free reflow (except 50 V) Features ● ● ● ● Country of origin Endurance : 105 ℃ 10000 h (ø6x8 : 7000 h, 50 V : 7000 h) Long life : 40 % to 100% higher than series FK (suffix G*) RoHS compliant AEC-Q200 compliant ● Malaysia Specifications Category temp. range Rated voltage range Capacitance range Capacitance tolerance Leakage current Dissipation factor (tan δ) Characteristics at low temperature Endurance Shelf life Resistance to soldering heat –55 ℃ to +105 ℃ 6.3 V to 50 V 10 μF to 680 μF ±20 % (120 Hz / +20 ℃) I ≦ 0.01 CV or 3 (μA) After 2 minutes (Whichever is greater) Please see the attached characteristics list Rated voltage (V) 6.3 10 16 25 35 50 Z (–25 ℃) / Z (+20 ℃) 3 3 2 2 2 2 (Impedance ratio at 120 Hz) Z (–40 ℃) / Z (+20 ℃) 4 4 3 3 3 3 Z (–55 ℃) / Z (+20 ℃) 8 8 6 5 4 3 After applying rated working voltage for 10000 hours(ø6ｘ8 : 7000 h, 50V : 7000 h) at +105 ℃ ± 2 ℃ and then being stabilized at +20 ℃, capacitors shall meet the following limits. Capacitance change Within ±30 % of the initial value (50 V size code F&G : ±35%) Dissipation factor（tan δ) ≦ 300 % of the initial limit (50 V size code F&G : ≦ 350%) Leakage current Within the initial limit After storage for 1000 hours at +105 ℃ ± 2 ℃ with no voltage applied and then being stabilized at +20 ℃, capacitors shall meet the limits specified in endurance. (With voltage treatment) After reflow soldering and then being stabilized at +20 ℃, capacitors shall meet the following limits. Capacitance change Within ±10 % of the initial value Dissipation factor（tan δ) Within the initial limit Leakage current Within the initial limit Frequency correction factor for ripple current Frequency (Hz) Correction factor 120 0.65 10 k 0.95 100 k to 1.00 Dimensions Example : 6.3 V 680 μF Marking color : BLACK A±0.2 L Series identification W Pressure Relief (ø10 and larger) Rated voltage code （P） H H Capacitance (μF) （I） 680 j FH øD±0.5 Negative polarity marking (–) B±0.2 K 0.3 max. （I） Marking 1k 0.85 （）Reference size Lot number Unit：mm R.voltage code j A C 6.3 10 16 E V H Unit：V 25 35 50 Size code øD L A, B H I W D8 6.3 7.7±0.3 6.6 7.8 max. 2.6 0.65±0.1 1.8 0.35 8.0 10.2±0.3 8.3 10.0 max. 3.4 0.90±0.2 3.1 0.70±0.2 10.0 10.2±0.3 10.3 12.0 max. 3.5 0.90±0.2 4.6 0.70±0.2 F G Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. P K +0.15 ー0.20 01-Jul-21 PDF
Документация на EEEFH0J101XL

Series catalog

Дата модификации: 24.09.2021

Размер: 512.8 Кб

9 стр.

Aluminum Electrolytic Capacitors NEW Surface Mount Type Halogen-free FH series High temperature Lead-Free reflow (except 50 V) Features ● ● ● ● Country of origin Endurance : 105 ℃ 10000 h (ø6x8 : 7000 h, 50 V : 7000 h) Long life : 40 % to 100% higher than series FK (suffix G*) RoHS compliant Not AEC-Q200 compliant ● Malaysia Specifications Category temp. range Rated voltage range Capacitance range Capacitance tolerance Leakage current Dissipation factor (tan δ) Characteristics at low temperature Endurance Shelf life Resistance to soldering heat –55 ℃ to +105 ℃ 6.3 V to 50 V 10 μF to 680 μF ±20 % (120 Hz / +20 ℃) I ≦ 0.01 CV or 3 (μA) After 2 minutes (Whichever is greater) Please see the attached characteristics list Rated voltage (V) 6.3 10 16 25 35 50 Z (–25 ℃) / Z (+20 ℃) 3 3 2 2 2 2 (Impedance ratio at 120 Hz) Z (–40 ℃) / Z (+20 ℃) 4 4 3 3 3 3 Z (–55 ℃) / Z (+20 ℃) 8 8 6 5 4 3 After applying rated working voltage for 10000 hours(ø6ｘ8 : 7000 h, 50V : 7000 h) at +105 ℃ ± 2 ℃ and then being stabilized at +20 ℃, capacitors shall meet the following limits. Capacitance change Within ±30 % of the initial value (50 V size code F&G : ±35%) Dissipation factor（tan δ) ≦ 300 % of the initial limit (50 V size code F&G : ≦ 350%) Leakage current Within the initial limit After storage for 1000 hours at +105 ℃ ± 2 ℃ with no voltage applied and then being stabilized at +20 ℃, capacitors shall meet the limits specified in endurance. (With voltage treatment) After reflow soldering and then being stabilized at +20 ℃, capacitors shall meet the following limits. Capacitance change Within ±10 % of the initial value Dissipation factor（tan δ) Within the initial limit Leakage current Within the initial limit Frequency correction factor for ripple current Frequency (Hz) Correction factor 120 0.65 10 k 0.95 100 k to 1.00 Dimensions Example : 6.3 V 680 μF Marking color : BLACK A±0.2 L Series identification W Pressure Relief (ø10 and larger) Rated voltage code （P） H H Capacitance (μF) （I） 680 j FH øD±0.5 Negative polarity marking (–) B±0.2 K 0.3 max. （I） Marking 1k 0.85 （）Reference size Lot number Unit：mm R.voltage code j A C 6.3 10 16 E V H Unit：V 25 35 50 Size code øD L A, B H I W D8 6.3 7.7±0.3 6.6 7.8 max. 2.6 0.65±0.1 1.8 0.35 8.0 10.2±0.3 8.3 10.0 max. 3.4 0.90±0.2 3.1 0.70±0.2 10.0 10.2±0.3 10.3 12.0 max. 3.5 0.90±0.2 4.6 0.70±0.2 F G Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. P K +0.15 ー0.20 29-Jan-21 PDF
Документация на серию FH_SMD

Дата модификации: 03.03.2021

Размер: 440.9 Кб

2 стр.

    Товары серии FH_SMD

    Наименование i Упаковка Ёмкость Напряжение Срок службы Диаметр Высота Шаг ESR Ток пульсаций НЧ Размер
    EEEFH0J101XL (PAN)

    		900 шт 6.3×6.3×6.6 мм
    EEEFH0J331L (PAN)

    		в ленте 500 шт 8×8×8.3 мм
    EEEFH0J471L (PAN)


    		 500 шт 8×8×8.3 мм
    EEEFH0J561L (PAN)


    		 500 шт 8×8×8.3 мм
    EEEFH0J681L (PAN)

    		500 шт 10×10×10.3 мм
    EEEFH1A101XL (PAN)


    		 в ленте 900 шт 6.3×6.3×6.6 мм
    EEEFH1A331L (PAN)


    		 500 шт 8×8×8.3 мм
    EEEFH1A471L (PAN)


    		 500 шт 8×8×8.3 мм
    EEEFH1A561L (PAN)


    		 500 шт 8×8×8.3 мм
    EEEFH1A681L (PAN)


    		 500 шт 10×10×10.3 мм
    EEEFH1C101XL (PAN)


    		 в ленте 900 шт 6.3×6.3×6.6 мм
    EEEFH1C221L (PAN)


    		 500 шт 8×8×8.3 мм
    EEEFH1C331L (PAN)


    		 в ленте 500 шт 8×8×8.3 мм
    EEEFH1C391L (PAN)


    		 500 шт 8×8×8.3 мм
    EEEFH1C470XL (PAN)


    		 в ленте 900 шт 6.3×6.3×6.6 мм
    EEEFH1C471L (PAN)


    		 500 шт 10×10×10.3 мм
    EEEFH1C681L (PAN)


    		 500 шт 10×10×10.3 мм
    EEEFH1E101XL (PAN)


    		 в ленте 900 шт 6.3×6.3×6.6 мм
    EEEFH1E221L (PAN)


    		 500 шт 8×8×8.3 мм
    EEEFH1E330XL (PAN)


    		 в ленте 900 шт 6.3×6.3×6.6 мм
    EEEFH1E331L (PAN)


    		 500 шт 10×10×10.3 мм
    EEEFH1E331UL (PAN)


    		 500 шт 8×8×8.3 мм
    EEEFH1E470XL (PAN)


    		 в ленте 900 шт 6.3×6.3×6.6 мм
    EEEFH1E471L (PAN)


    		 500 шт 10×10×10.3 мм
    EEEFH1H101L (PAN)


    		 500 шт 10×10×10.3 мм
    EEEFH1H470L (PAN)


    		 в линейках 500 шт 8×8×8.3 мм
    EEEFH1V100XL (PAN)


    		 в ленте 900 шт 6.3×6.3×6.6 мм
    EEEFH1V101L (PAN)


    		 500 шт 8×8×8.3 мм
    EEEFH1V220XL (PAN)


    		 в ленте 900 шт 6.3×6.3×6.6 мм
    EEEFH1V221L (PAN)


    		 в линейках 500 шт 10×10×10.3 мм
    EEEFH1V221UL (PAN)


    		 500 шт 8×8×8.3 мм
    EEEFH1V330XL (PAN)


    		 900 шт 6.3×6.3×6.6 мм
    EEEFH1V331L (PAN)


    		 500 шт 10×10×10.3 мм
    EEEFH1V391L (PAN)


    		 500 шт 10×10×10.3 мм
    EEEFH1V470XL (PAN)


    		 в ленте 900 шт 6.3×6.3×6.6 мм
