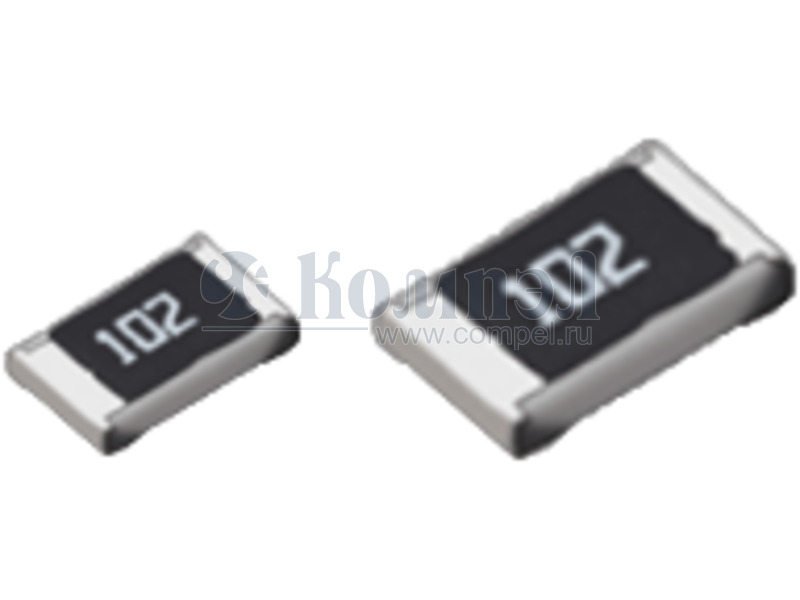

Серия постоянных резисторов ERA2A

Общие характеристики

	Раздел	Резисторы постоянные
	Допуск по сопротивлению
	Мощность рассеиваемая
	Температурный коэффициент сопротивления
	Корпус производителя
	Способ монтажа
	Температура рабочая
	Размер	1×0.5×0.35 мм

Документация на серию ERA2A

Metal Film (Thin Film) Chip Resistors, High Reliability Type ERA A type ERA 1A, 2A, 3A, 6A, 8A series Features ● High reliability ● ● ● ● ● : Stable at high temperature and humidity (85 ℃ 85 %RH rated load, Category temperature range : –55 ℃ to +155 ℃) High accuracy : Low resistance tolerance and Temperature Coefficient of Resistance High performance : Low current noise, excellent linearity Reference standard : IEC 60115-8, JIS C 5201-8, JEITA RC-2133C AEC-Q200 compliant (except ERA1A) RoHS compliant ■ As for packaging methods, land pattern, soldering conditions and safety precautions, please see data files 1T Explanation of part numbers ERJS02 ～ ERJS1Tシリーズ ● E24 series 1 2 3 4 5 6 7 8 9 10 E R A 3 A E B 1 0 2 Product code Size, Power rating Code Thin film chip resistors inch size Power rating Temp. coefﬁcient Code Code Tolerance -6 1A 0201 0.05 W R ±10×10 /K W ±0.05 % 2A 0402 0.063 W P ±15×10-6/K B ±0.1 % 3A 0603 0.1 W E ±25×10-6/K C ±0.25 % 6A 0805 0.125 W H ±50×10-6/K D ±0.5 % 8A 1206 0.25 W K ±100×10-6/K V Resistance value Resistance tolerance T.C.R. 11 Packaging methods Consist of three ﬁgures for E24 series Code C resistance value. The ﬁrst two digits are signiﬁcant ﬁgures of resistance and the third X one denotes number of zeros following. V (example) 102 : 1 kΩ Packaging Part No. Pressed carrier taping 2 mm pitch, 15,000 pcs Punched carrier taping 2 mm pitch, 10,000 pcs Punched carrier taping 4 mm pitch, 5,000 pcs ERA1A ERA2A ERA3A ERA6A ERA8A ● E96 series and other Resistance values 1 2 3 4 5 6 7 8 9 10 E R A 3 A E B 1 0 5 Product Code Size, Power rating Temp. coefﬁcient Resistance tolerance 11 12 V 1 Resistance value Thin film Code inch size Power rating Code T.C.R. Code Tolerance chip resistors Consist of four ﬁgures 1A 0201 0.05 W R ±10×10-6/K W ±0.05 % for E96 series 2A 0402 0.063 W P ±15×10-6/K B ±0.1 % 3A 0603 0.1 W E ±25×10-6/K C ±0.25 % 6A 0805 0.125 W H ±50×10-6/K D ±0.5 % 8A 1206 0.25 W K ±100×10-6/K resistance value. The ﬁrst three digits are signiﬁcant ﬁgures of resistance and the fourth one denotes Packaging methods Code C X number of zeros following. (example) V Packaging Part No. Pressed carrier taping 2 mm pitch, 15,000 pcs Punched carrier taping 2 mm pitch, 10,000 pcs Punched carrier taping 4 mm pitch, 5,000 pcs 1051 : 1.05 kΩ ERA1A ERA2A ERA3A ERA6A ERA8A Note : Duplicated resistance values as E24 series part umbers shall follow E24 part numbers. (apply three digit resistance value) Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 1-Jul-21

PDF

Документация на ERA2AEC470X

Series catalog

Дата модификации: 02.07.2021

Размер: 677.1 Кб

7 стр.

найти ERA2A.pdf
