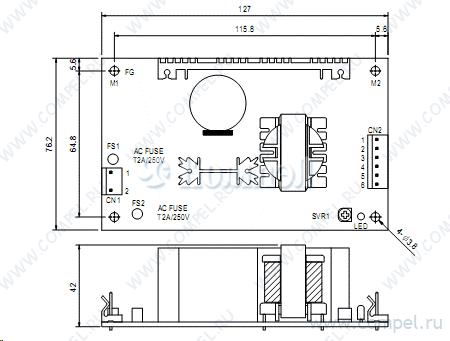

Серия AC-DC сетевых преобразователей MPS-65

Общие характеристики

	Раздел	AC-DC сетевые преобразователи
	Тип стабилизации
	Вход
	Конструктивное исполнение
	Возможности
	Количество выходов
	Тип управления выходом
	Исполнение
	Входное напряжение AC
	Входное напряжение DC
	Коэффициент мощности
	Напряжение изоляции вход-выход
	Напряжение изоляции вход-земля
	Напряжение изоляции выход-земля
	Применение
	Рабочая температура

Документация на серию MPS-65

MPS-65 65W Single Output Medical Type series User’s Manual ■ Features : Universal AC input / Full range Low leakage current <250 μA Protections: Short circuit / Overload / Over voltage Cooling by free air convection Medical safety approved (2 x MOPP between primary to secondary) 100% full load burn-in test Fixed switching frequency at 45KHz 3 years warranty EN 60601-1 IEC 60601-1 SPECIFICATION 8 MODEL OUTPUT MPS-65-3.3 MPS-65-5 MPS-65-7.5 MPS-65-12 MPS-65-13.5 MPS-65-15 MPS-65-24 MPS-65-27 MPS-65-48 DC VOLTAGE 3.3V 5V 7.5V 12V 13.5V 15V 24V 27V 48V RATED CURRENT 12A 12A 8A 5.2A 4.7A 4.2A 2.7A 2.4A 1.35A CURRENT RANGE 0 ~ 15.2A 0 ~ 13.8A 0 ~ 9.6A 0 ~ 6A 0 ~ 5.4A 0 ~ 4.8A 0 ~ 3A 0 ~ 2.7A 0 ~ 1.5A RATED POWER 39.6W 60W 60W 62.4W 63.45W 63W 64.8W 64.8W 64.8W OUTPUT POWER (max.) 72W(+3.3V:50W;+5V:69W)with 18CFM min. Forced air convection 100mVp-p 100mVp-p 100mVp-p 100mVp-p RIPPLE & NOISE (max.) Note.2 80mVp-p 100mVp-p VOLTAGE ADJ. RANGE 2.97 ~ 3.63V 4.5 ~ 5.5V VOLTAGE TOLERANCE Note.3 ±3.0% ±3.0% INPUT ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±3.0% ±3.0% ±3.0% ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% SETUP, RISE TIME 800ms, 30ms/230VAC 79% 80% 80% 80% HOLD UP TIME (Typ.) 50ms/230VAC VOLTAGE RANGE 90 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 66% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.6A/115VAC OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS ISOLATION LEVEL SAFETY & WITHSTAND VOLTAGE EMC ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY 800ms, 30ms/115VAC at full load 16ms/115VAC at full load 127 ~ 370VDC 74% 76% COLD START 17A/115VAC 78% 40A/230VAC 73 ~ 105W (3.3V:51 ~ 75W)(5V:70 ~ 105W) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 3.8 ~ 4.46V 5.75 ~ 6.75V 8.63 ~ 10.1V 13.8 ~ 16.2V 15.5 ~ 18.2V 17.25 ~ 20.25V 27.6 ~ 32.4V 31 ~ 36.45V 55.2 ~ 64.8V Protection type : Hiccup mode, recovers automatically after fault condition is removed -10 ~ +60℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -20 ~ +85℃, 10 ~ 95% RH ±0.04%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A MTBF 359.7Khrs min. DIMENSION 127*76*42mm (L*W*H) 0.23Kg; 54pcs/14.6Kg/1.28CUFT PACKING 77% 0.9A/230VAC Note.7 Earth leakage current < 250μ A/264VAC , Touch current < 60μ A/264VAC PROTECTION NOTE 100mVp-p LOAD REGULATION OVERLOAD OTHERS 100mVp-p 6.75 ~ 8.25V 10.8 ~ 13.2V 12.2 ~ 14.85V 13.5 ~ 16.5V 21.6 ~ 26.4V 24.3 ~ 29.7V 43.2 ~ 52.8V ±3.0% ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% LINE REGULATION LEAKAGE CURRENT (Note 4) 100mVp-p MIL-HDBK-217F (25℃) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com) 5. Mounting holes M1 and M2 should be grounded for EMI purposes. 6. Heat Sink HS1,HS2 can not be shorted. 7. Touch current was measured from primary input to DC output. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:MPS-65-SPEC 2021-09-15

PDF

Документация на MPS-65-7.5

MPS-65-20210915.cdr

Дата модификации: 15.09.2021

Размер: 96.2 Кб

2 стр.

MPS-65 65W Single Output Medical Type series Features : Universal AC input / Full range Low leakage current 0.3mA Protections: Short circuit / Overload / Over voltage Cooling by free air convection 100% full load burn-in test Fixed switching frequency at 45KHz 3 years warranty EN60601-1 IEC60601-1 SPECIFICATION MODEL OUTPUT MPS-65-3.3 MPS-65-5 MPS-65-7.5 MPS-65-12 MPS-65-13.5 MPS-65-15 MPS-65-24 MPS-65-27 DC VOLTAGE 3.3V 5V 7.5V 12V 13.5V 15V 24V 27V 48V RATED CURRENT 12A 12A 8A 5.2A 4.7A 4.2A 2.7A 2.4A 1.35A CURRENT RANGE 0 ~ 15.2A 0 ~ 13.8A 0 ~ 9.6A 0 ~ 6A 0 ~ 5.4A 0 ~ 4.8A 0 ~ 3A 0 ~ 2.7A 0 ~ 1.5A RATED POWER 39.6W 60W 60W 62.4W 63.5W 63W 64.8W 64.8W 64.8W OUTPUT POWER (max.) 72W(+3.3V:50W;+5V:69W)with 18CFM min. Forced air convection 100mVp-p 100mVp-p 100mVp-p 100mVp-p RIPPLE & NOISE (max.) Note.2 80mVp-p 100mVp-p VOLTAGE ADJ. RANGE 2.97 ~ 3.63V 4.5 ~ 5.5V VOLTAGE TOLERANCE Note.3 3.0% 3.0% 100mVp-p 100mVp-p 6.75 ~ 8.25V 10.8 ~ 13.2V 12.2 ~ 14.85V 13.5 ~ 16.5V 21.6 ~ 26.4V 24.3 ~ 29.7V 43.2 ~ 52.8V 3.0% 2.0% 2.0% 2.0% 2.0% 2.0% 2.0% LINE REGULATION 1.0% 1.0% 1.0% 1.0% 1.0% 1.0% 1.0% 1.0% 1.0% LOAD REGULATION 3.0% 3.0% 3.0% 2.0% 2.0% 2.0% 2.0% 2.0% 2.0% SETUP, RISE TIME INPUT 100mVp-p MPS-65-48 800ms, 30ms/230VAC HOLD UP TIME (Typ.) 50ms/230VAC VOLTAGE RANGE 90 ~ 264VAC FREQUENCY RANGE 47 ~ 440Hz EFFICIENCY(Typ.) 66% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.6A/115VAC LEAKAGE CURRENT OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION 800ms, 30ms/115VAC at full load 16ms/115VAC at full load 127 ~ 370VDC 74% 76% 77% 78% 79% 80% 80% 80% 0.9A/230VAC COLD START 15A/115VAC <0.3mA / 264VAC 30A/230VAC 73 ~ 105W (3.3V:51 ~ 75W)(5V:70 ~ 105W) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 3.8 ~ 4.46V 5.75 ~ 6.75V 8.63 ~ 10.1V 13.8 ~ 16.2V 15.5 ~ 18.2V 17.25 ~ 20.25V 27.6 ~ 32.4V 31 ~ 36.45V 55.2 ~ 64.8V Protection type : Hiccup mode, recovers automatically after fault condition is removed -10 ~ +60 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -20 ~ +85 , 10 ~ 95% RH 0.04%/ (0 ~ 50 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes SAFETY STANDARDS WITHSTAND VOLTAGE UL2601-1, TUV EN60601-1, IEC601-1 Approved HARMONIC CURRENT Compliance to EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN60601-1-2 Medical level, criteria A I/P-O/P:4KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC SAFETY & ISOLATION RESISTANCE I/P-O/P, I/P-FG:100M Ohms/500VDC EMC EMI CONDUCTION & RADIATION Compliance to EN55011 (CISPR11) Class B (Note 4) EMS IMMUNITY MTBF OTHERS DIMENSION PACKING NOTE 359.7Khrs min. MIL-HDBK-217F (25 127*76*42mm (L*W*H) 0.23Kg; 54pcs/14.6Kg/1.35CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Mounting holes M1 and M2 should be grounded for EMI purposes. File Name:MPS-65-SPEC 2006-12-18

PDF

Документация на серию MPS-65

MPS-65.cdr

Дата модификации: 12.01.2007

Размер: 331.5 Кб

2 стр.

найти MPS-65.pdf

Товары серии MPS-65

Наименование	Упаковка	P вых	Выход	U1	I1	Защита	КПД	Шум	Размер
MPS-65-12 (MW)	в коробках 6 шт					КЗ, перегрузка, перенапряжение			127×76×42 мм
MPS-65-12 PBF (MW)			—			OVERLOAD, OVER VOLTAGE, SHORT CIRCUIT		—	127×76 мм
MPS-65-13.5 (MW)						КЗ, перегрузка, перенапряжение			127×76×42 мм
MPS-65-13.5 PBF (MW)			—			OVERLOAD, OVER VOLTAGE, SHORT CIRCUIT		—	127×76 мм
MPS-65-15 (MW)	1 шт					КЗ, перегрузка, перенапряжение			127×76×42 мм
MPS-65-15 PBF (MW)			—			OVERLOAD, OVER VOLTAGE, SHORT CIRCUIT		—	127×76 мм
MPS-65-24 (MW)	в коробках 54 шт					КЗ, перегрузка, перенапряжение			127×76×42 мм
MPS-65-24 PBF (MW)			—			OVERLOAD, OVER VOLTAGE, SHORT CIRCUIT		—	127×76 мм
MPS-65-27 (MW)	6 шт					КЗ, перегрузка, перенапряжение			127×76×42 мм
MPS-65-27 PBF (MW)			—			OVERLOAD, OVER VOLTAGE, SHORT CIRCUIT		—	127×76 мм
MPS-65-3.3 (MW)	1 шт					КЗ, перегрузка, перенапряжение			127×76×42 мм
MPS-65-48 (MW)						КЗ, перегрузка, перенапряжение			127×76×42 мм
		—	—	—	—	—	—	—	—
MPS-65-7.5 (MW)	в коробках 6 шт					КЗ, перегрузка, перенапряжение			127×76×42 мм
MPS-65-7.5 PBF (MW)			—			OVERLOAD, OVER VOLTAGE, SHORT CIRCUIT		—	127×76 мм
