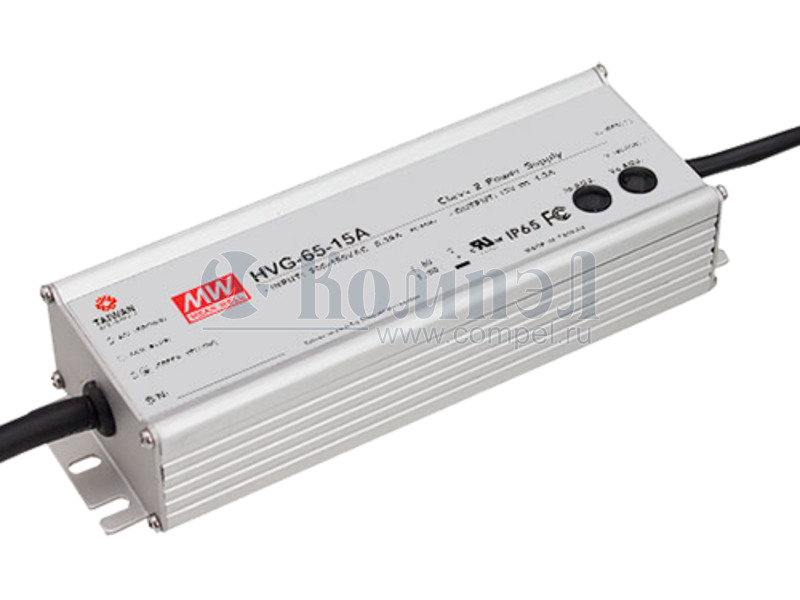

Серия LED-драйверов HVG-65A

Общие характеристики

	Раздел	LED-драйверы
	Тип преобразователя
	Напряжение сети/входное номинальное
	Режим стабилизации
	Тип диммирования
	Исполнение конструктивное
	Степень защиты (IP)
	Подстройка выходных параметров
	Диапазон входных напряжений (AC)
	Диапазон входных напряжений (DC)
	Напряжение изоляции вход-выход
	Количество выходов
	Коэффициент мощности
	Функция защиты	КЗ, перегрузка, перенапряжение, перегрев
	Температура рабочая
	Размер	189×62×37 мм
	Применение	для промышленного и наружного освещения
	Особенности	широкий вход, низкие пульсации

Документация на серию HVG-65A

65W Constant Voltage + Constant Current LED Driver HVG-65 series User’s Manual IP65 IP67 ■ Features Wide input range 180 ~ 528VAC Constant Voltage + Constant Current mode output Metal housing with ClassⅠdesign Built-in active PFC function Class 2 power unit IP67 / IP65 rating for indoor or outdoor installations Function options: output adjustable via potentiometer; Type HL ■ Applications LED street lighting LED high-bay lighting Parking space lighting LED fishing lamp LED greenhouse lighting 3 in 1 dimming (dim-to-off); Timer dimming Typical lifetime>50000 hours 5 years warranty ■ Description HVG-65 series is a 65W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-65 operates from 180~528 VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. ■ Model Encoding HVG - 65 - 15 A Function options Rated output voltage(12/15/20/24/30/36/42/48/54V) Rated wattage Series name Type A B IP Level IP65 IP67 AB IP65 D IP67 Function Io and Vo adjustable through built-in potentiometer. 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) Built-in Smart timer dimming function by user request. Note In Stock In Stock In Stock By request File Name:HVG-65-SPEC 2021-09-03

Документация на HVG-65-54B

HVG-65.cdr

Дата модификации: 02.09.2021

Размер: 169.9 Кб

9 стр.

найти HVG-65A.pdf

Товары серии HVG-65A

Наименование	i	Упаковка	Мощность выходная	Напряжение выходное	Ток выходной	Эффективность
HVG-65-12A (MW)		1 шт
HVG-65-24A (MW)		1 шт
