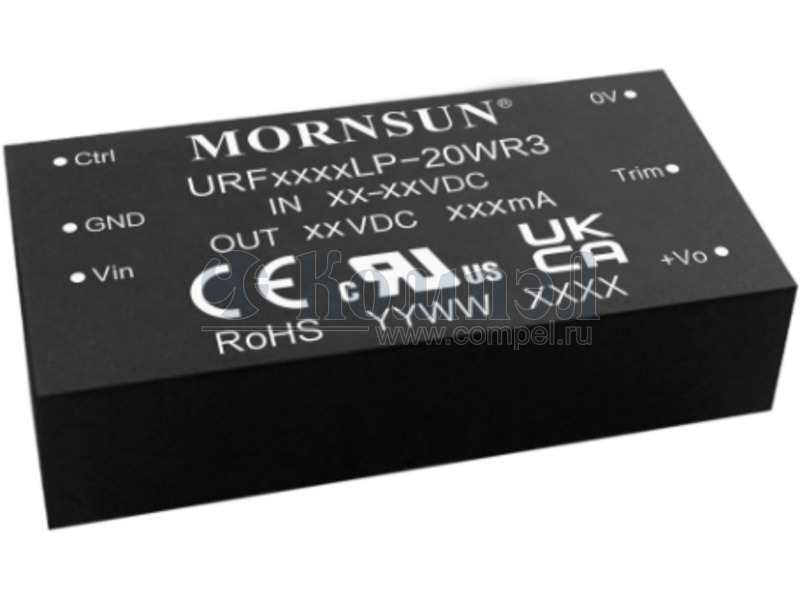

Серия DC-DC модульных преобразователей URF_LP-20WR3

Mornsun

Общие характеристики

 Раздел DC-DC модульные преобразователи
Выходная мощность
Количество каналов
Возможности стандарт, подстройка выхода, функция Remote On/Off, изолированный
Комплекс защит
КПД
Напряжение изоляции вход-выход
Размер 51.5×26.5×12.2 мм
Рабочая температура

Документация на серию URF_LP-20WR3

DC/DC Converter URF_LP-20WR3 Series FEATURES 20W isolated DC-DC converter in DIP package Ultra-wide input and regulated single output           Ultra-wide 4:1 input voltage range High efficiency up to 89% No-load power consumption as low as 0.12W I/O isolation test voltage 3K VDC Operating ambient temperature range: -40℃ to +85℃ Input under-voltage protection, output short-circuit, over-voltage, over-current protection CISPR32/EN55032 CLASS A EMI compliant without external components Industry standard pin-out Input reverse polarity protection available with chassis (A2S) or 35mm DIN-Rail mounting (A4S) version IEC60950, UL60950, EN60950 Approved CB Patent Protection RoHS URF_LP-20WR3 series are isolated 20W DC-DC converter products with a 4:1 input voltage range. They feature efficiencies of up to 89%, 3000VDC input to output isolation, operating ambient temperature of -40℃ to +85℃, input under-voltage protection, output short circuit, over-voltage and over-current protection. The products meet CLASS A of CISPR32/EN55032 EMI standards, optional packages are offered for chassis or DIN-rail mounting (A2S, A4S), adding additional input reverse polarity protection. They are widely used in applications of requiring ultra-wide input voltage and high isolation, such as electrical power industry, data transmission, battery powered devices, telecommunication, distributed power systems, hybrid module system, remote control systems, industrial robotics, etc. Selection Guide Certification UL/CE/CB Voltage (VDC) Current (mA) (Max./Min.) Full Load ③ Efficiency (%) Min./Typ. URF2403LP-20WR3 3.3 5000/0 84/86 10000 URF2405LP-20WR3 5 4000/0 87/89 10000 Part No. Input Voltage (VDC) ① URF2409LP-20WR3 ② Max. Capacitive Load(µF) 9 2222/0 86/88 4700 1667/0 86/88 1600 15 1334/0 87/89 1000 URF2418LP-20WR3 18 1111/0 87/89 680 URF2424LP-20WR3 24 833/0 87/89 500 URF4803LP-20WR3 3.3 5000/0 84/86 10000 URF2415LP-20WR3 UL/CE/CB Max. 12 URF2412LP-20WR3 -- Nominal (Range) Output URF4805LP-20WR3 URF4812LP-20WR3 URF4815LP-20WR3 URF4824LP-20WR3 24 (9-36) 48 (18-75) 40 80 5 4000/0 86/88 10000 12 1667/0 86/88 1600 15 1334/0 87/89 1000 24 833/0 87/89 500 Notes： ① Use ”A2S” suffix for chassis mounting and “A4S” suffix for DIN-Rail mounting; ② Exceeding the maximum input voltage may cause permanent damage; ③ Efficiency is measured at nominal input voltage and rated output load; efficiencies for A2S and A4S Model’s is decreased by 2% due to the input reverse polarity protection circuit. 2019.10.30-A/9 Page 1 of 6 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на URF4824LP-20WR3

URF_LP-20WR3 Series Keywords:

Дата модификации: 01.11.2019

Размер: 1.43 Мб

6 стр.

    Товары серии URF_LP-20WR3

    Наименование i Упаковка Монтаж U вх Выход U вх ном. U1 I1
    URF2403LP-20WR3 (MORNSUN)


    URF2405LP-20WR3 (MORNSUN)


    		 3 шт
    URF2409LP-20WR3 (MORNSUN)


    		 в линейках 4 шт
    URF2412LP-20WR3 (MORNSUN)


    		 1 шт
    URF2415LP-20WR3 (MORNSUN)


    URF2424LP-20WR3 (MORNSUN)


    		 в линейках 10 шт
    URF4803LP-20WR3 (MORNSUN)


    URF4805LP-20WR3 (MORNSUN)


    		 в линейках 8 шт
    URF4812LP-20WR3 (MORNSUN)


    		 в линейках 8 шт
    URF4815LP-20WR3 (MORNSUN)


    URF4824LP-20WR3 (MORNSUN)


    		 4 шт
