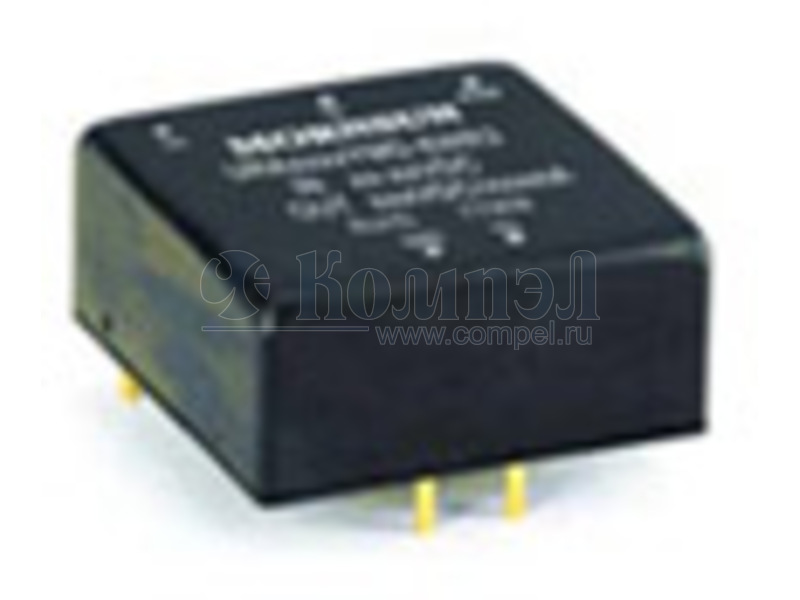

Серия DC-DC модульных преобразователей URA_YMD-6WR3

Mornsun

Общие характеристики

 Раздел DC-DC модульные преобразователи
Выходная мощность
Комплекс защит
КПД
Напряжение изоляции вход-выход
Размер 25.4×25.4×11.7 мм
Рабочая температура

Документация на серию URA_YMD-6WR3

DC/DC Converter URA_YMD-6WR3 & URB_YMD-6WR3 Series FEATURES 6W isolated DC-DC converter in YMD package Ultra-wide input and regulated dual/single output  Ultra-wide 4:1 input voltage range  High efficiency up to 88%  No-load power consumption as low as 0.12W  I/O test isolation voltage: 1.5k VDC  Input under-voltage protection, output short-circuit, over-current, over-voltage protection  Operating ambient temperature range: -40℃ to +85℃  Meet CISPR32/EN55032 CLASS A, without extra components  Input reverse polarity protection available with chassis(A2S ) or Din-Rail mounting (A4S) version  Industry standard pin-out Patent Protection Report UL60950-1 Report EN62368-1 BS EN62368-1 CB RoHS IEC60950-1 URA_YMD-6WR3 & URB_YMD-6WR3 series are isolated 6W DC-DC converter products with 4:1 input voltage range. They feature efficiencies up to 88%, 1500VDC input to output isolation and the converter safely operate ambient temperature of -40℃ to +85℃, input under-voltage protection, output short-circuit, over-current, over-voltage protection. They meet CLASS A of CISPR32/EN55032 EMI standards without external components, optional packages are offered for chassis or DIN-rail mounting (A2S, A4S), adding additional input reverse polarity protection, which make them widely applied in medical care, industrial control, electric power, instruments and communication and railway fields. Selection Guide Input Voltage (VDC) Certification Voltage (VDC) Current (mA) Max./Min. URA2405YMD-6WR3 ±5 ±600/0 81/83 470 URA2412YMD-6WR3 ±12 ±250/0 84/87 100 URA2415YMD-6WR3 ±15 ±200/0 83/85 100 URA2424YMD-6WR3 ±24 ±125/0 85/87 100 3.3 1500/0 75/77 1800 5 1200/0 80/83 1000 URB2409YMD-6WR3 9 667/0 82/84 680 URB2412YMD-6WR3 12 500/0 83/85 470 URB2415YMD-6WR3 15 400/0 84/86 220 ① Nominal (Range) ② URB2403YMD-6WR3 URB2405YMD-6WR3 UL/EN/BS EN/IEC Output Full Load ④ Efficiency (%) Min./Typ. Part No. 24 (9-36) Max. 40 ③ Capacitive ⑤ Load (µF)Max. URB2424YMD-6WR3 24 250/0 84/86 100 URA4805YMD-6WR3 ±5 ±600/0 81/83 470 URA4812YMD-6WR3 ±12 ±250/0 85/87 100 URA4815YMD-6WR3 ±15 ±200/0 86/88 100 URB4803YMD-6WR3 3.3 1500/0 77/79 1800 URB4805YMD-6WR3 48 (18-75) 80 5 1200/0 81/83 1000 URB4812YMD-6WR3 12 500/0 85/87 470 URB4815YMD-6WR3 15 400/0 86/88 220 URB4824YMD-6WR3 24 250/0 86/88 100 Notes： ①Use “A2S” suffix for chassis mounting and “A4S” suffix for Din-Rail mounting; ②The A2S and A4S Model’s start-up and minimum input voltages are increased by 1VDC due to the input reverse polarity protection circuit; ③Exceeding the maximum input voltage may cause permanent damage; ④Efficiency is measured at nominal input voltage and rated output load; efficiencies for A2S and A4S Model’s is decreased by 2% due to the input reverse polarity protection circuit; ⑤The specified maximum capacitive load value for Vo1 and Vo2 output is identical. 2021.12.27-B/1 Page 1 of 6 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на URB4824YMD-6WR3A4S

URA_YMD-6WR3 & URB_YMD-6WR3 Series Keywords:

Дата модификации: 20.01.2022

Размер: 1.83 Мб

6 стр.

DC/DC Converter URA_YMD-6WR3 & URB_YMD-6WR3 Series 6W, Ultra wide input, isolated & regulated dual/single output, YMD package, DC-DC converter FEATURES         CB Patent Protection RoHS   Ultra wide input voltage range (4:1) High efficiency up to 88% No-load power consumption as low as 0.12W Isolation voltage :1.5K VDC Input under-voltage protection, output short circuit, over-current, over-voltage protection Operating temperature range: -40℃ to +85℃ Meet CISPR22/EN55022 CLASS A, without external components Reverse voltage protection available with A2S(Chassis mounting) or A4S(35mm DIN-Rail mounting) IEC60950, UL60950, EN60950 approval International standard pin-out URA_YMD-6WR3 & URB_YMD-6WR3 series are isolated 6W DC-DC products with 4:1 input voltage. They feature efficiency up to 88%, 1500VDC isolation, operating temperature of -40℃ to +85℃, input under-voltage protection, output over-voltage, over-current, short circuit protection and EMI meets CISPR22/EN55022 CLASS A, which make them widely applied in medical care, industrial control, electric power, instruments and communication fields. And extension package A2S and A4S also enable them with reverse voltage protection. Selection Guide Input Voltage (VDC) Certification Output Voltage (VDC) Output Current (mA) (Max./Min.) URA2405YMD-6WR3 ±5 ±600/0 81/83 470 URA2412YMD-6WR3 ±12 ±250/0 85/87 100 URA2415YMD-6WR3 ±15 ±200/0 86/88 100 URA2424YMD-6WR3 ±24 ±125/0 86/88 100 3.3 1500/0 77/79 1800 5 1200/0 81/83 1000 URB2409YMD-6WR3 9 667/0 83/85 680 URB2412YMD-6WR3 12 500/0 85/87 470 URB2415YMD-6WR3 15 400/0 86/88 220 Part No. URB2403YMD-6WR3 URB2405YMD-6WR3 UL/CE/CB Output Efficiency (%,Min./Typ.) @ Full Load ① Nominal (Range) ② 24 (9-36) Max. 40 ③ ④ Max. Capacitive ⑤ Load (µF) URB2424YMD-6WR3 24 250/0 86/88 100 URA4805YMD-6WR3 ±5 ±600/0 81/83 470 URA4812YMD-6WR3 ±12 ±250/0 85/87 100 URA4815YMD-6WR3 ±15 ±200/0 86/88 100 URB4803YMD-6WR3 3.3 1500/0 77/79 1800 URB4805YMD-6WR3 48 (18-75) 80 5 1200/0 81/83 1000 URB4812YMD-6WR3 12 500/0 85/87 470 URB4815YMD-6WR3 15 400/0 86/88 220 URB4824YMD-6WR3 24 250/0 86/88 100 Notes： 1 Part No. with suffix of “A2S” means chassis mounting and suffix of “A4S” means DIN-Rail mounting (e.g. URB2405YMD-6WR3A2S means chassis mounting; URB2405YMD-6WR3A4S means DIN-Rail mounting); 2 The minimum input voltage and starting voltage of A2S (wiring) and A4S (rail) Model are 1VDC higher than those of DIP package due to input reverse polarity protection function. 3 Absolute maximum rating without damage on the converter, but it isn't recommended; 4 Efficiency is measured In nominal input voltage and rated output load;A2S (wiring) and A4S (rail) Model due to input reverse polarity protection, minimum efficiency greater than Min.-2 is qualified; 5 The capacitive loads of positive and negative outputs are identical. 2016.11.11-A/4 Page 1 of 6 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию URA_YMD-6WR3

Author: eng128

Дата модификации: 15.11.2016

Размер: 1.88 Мб

6 стр.

    Товары серии URA_YMD-6WR3

    Наименование i Упаковка Монтаж Каналов U вх Выход Возможности U вх ном. U1 U2 I1 I2
    URA2405YMD-6WR3 (MORNSUN)

    URA2405YMD-6WR3A2S (MORNSUN)

    URA2405YMD-6WR3A4S (MORNSUN)

    		5 шт
    URA2409YMD-6WR3 (MORNSUN)

    URA2412YMD-6WR3 (MORNSUN)

    URA2412YMD-6WR3A2S (MORNSUN)

    URA2412YMD-6WR3A4S (MORNSUN)

    		5 шт
    URA2415YMD-6WR3 (MORNSUN)

    URA2415YMD-6WR3A2S (MORNSUN)

    URA2415YMD-6WR3A4S (MORNSUN)

    URA2424YMD-6WR3 (MORNSUN)

    		1 шт
    URA2424YMD-6WR3A2S (MORNSUN)

    URA2424YMD-6WR3A4S (MORNSUN)

    URA4805YMD-6WR3 (MORNSUN)

    		в линейках 50 шт
    URA4805YMD-6WR3A2S (MORNSUN)

    URA4805YMD-6WR3A4S (MORNSUN)

    URA4812YMD-6WR3 (MORNSUN)

    URA4812YMD-6WR3A2S (MORNSUN)

    URA4812YMD-6WR3A4S (MORNSUN)

    URA4815YMD-6WR3 (MORNSUN)

    		80 шт
    URA4815YMD-6WR3A2S (MORNSUN)

    URA4815YMD-6WR3A4S (MORNSUN)

    URB2403YMD-6WR3 (MORNSUN)

    		— —
    URB2405YMD-6WR3 (MORNSUN)

    		в линейках 50 шт — —
    URB2405YMD-6WR3A2S (MORNSUN)

    		— —
    URB2405YMD-6WR3A4S (MORNSUN)

    		5 шт — —
    URB2409YMD-6WR3 (MORNSUN)

    		— —
    URB2412YMD-6WR3 (MORNSUN)

    		в линейках 3 шт — —
    URB2415YMD-6WR3 (MORNSUN)

    		1 шт — —
    URB2424YMD-6WR3 (MORNSUN)

    		— —
    URB4803YMD-6WR3 (MORNSUN)

    		5 шт — —
    URB4805YMD-6WR3 (MORNSUN)

    		1 шт — —
    URB4812YMD-6WR3 (MORNSUN)

    		в линейках 24 шт — —
    URB4815YMD-6WR3 (MORNSUN)

    		— —
    URB4824YMD-6WR3 (MORNSUN)

    		— —
