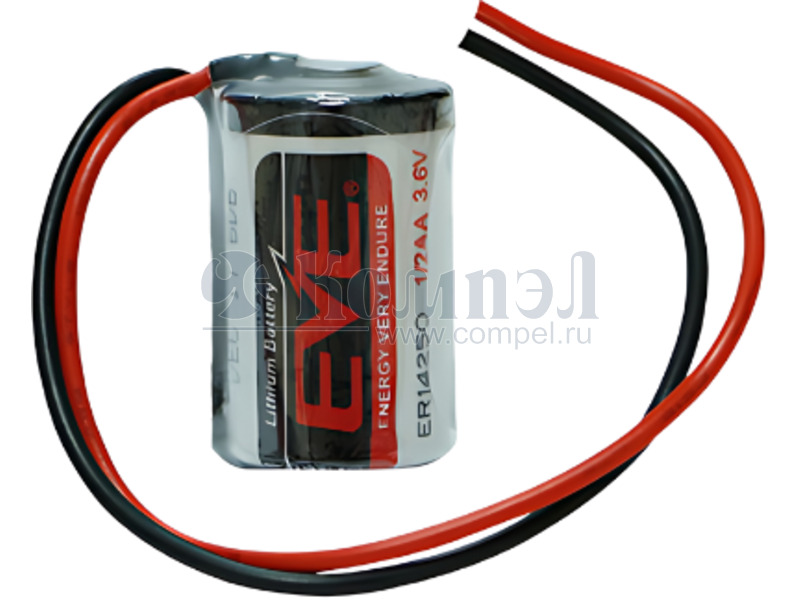

Серия батареи тионил-хлоридной (Li-SOCl2) ER14250EVE

Общие характеристики

	Раздел	Батареи тионил-хлоридные (Li-SOCl2)
	Типоразмер
	Напряжение номинальное
	Ёмкость номинальная
	Ток разряда стандартный
	Ток разряда продолжительный (макс)
	Ток разряда импульсный (макс)
	Размер	ø14.5×14.5 мм
	Температура рабочая

Документация на серию ER14250EVE

DE-Passivation This document serves to guide our clients how to activate the passivated batteries. In general, EVE recommend that battery should be stored in a cool, clean, dry environment, the recommended temperature is ≤+30℃, relative humidity ≤+50% to slow the passivation process and maintain a low self-discharge rate. Any high temperature would expedite the passivation process as well as increase the self-discharge rate. After 6 months storage, EVE recommend to active the battery. EVE suggest pre – discharge the batteries with a relatively low continuous loading current approximately to consume its capacity as little as possible，below is the discharge current, discharge time and loading resistance applied for each cell in specific: Battery model Loading current Discharge time Nominal loading voltage ER14250 20mA 15min 1kΩ2s≥3.3V ER14335 25mA 15min 330Ω2s≥3.1V ER14505 30mA 15min 165Ω2s≥3.1V ER17505 30mA 20min 165Ω2s≥3.2V ER18505 35mA 20min 165Ω2s≥3.2V ER26500 60mA 25min 96Ω2s≥3.2V ER34615 75mA 40min 56Ω2s≥3.0V Remark: After the battery cell is activated, stand at room temperature for 12h and test the load voltage. — 1 —  PDF

Документация на ER14250/S

Дата модификации: 08.05.2024

Размер: 127.5 Кб

1 стр.

DE-Passivation This document serves to guide our clients how to activate the passivated batteries. In general, EVE recommend that battery should be stored in a cool, clean, dry environment, the recommended temperature is ≤+30℃, relative humidity ≤+50% to slow the passivation process and maintain a low self-discharge rate. Any high temperature would expedite the passivation process as well as increase the self-discharge rate. After 6 months storage, EVE recommend to active the battery. EVE suggest pre – discharge the batteries with a relatively low continuous loading current approximately to consume its capacity as little as possible，below is the discharge current, discharge time and loading resistance applied for each cell in specific: Battery model Loading current Discharge time Nominal loading voltage ER14250 20mA 15min 1kΩ2s≥3.3V ER14335 25mA 15min 330Ω2s≥3.1V ER14505 30mA 15min 165Ω2s≥3.1V ER17505 30mA 20min 165Ω2s≥3.2V ER18505 35mA 20min 165Ω2s≥3.2V ER26500 60mA 25min 96Ω2s≥3.2V ER34615 75mA 40min 56Ω2s≥3.0V Remark: After the battery cell is activated, stand at room temperature for 12h and test the load voltage. — 1 —  PDF

Документация на ER14250V/S

Дата модификации: 08.05.2024

Размер: 127.5 Кб

1 стр.

• найти ER14250EVE.pdf

Товары серии ER14250EVE

Наименование	i	Упаковка	Тип батареи	Тип выводов
ER14250 (EVE)   ER14250 (MINAMOTO)
ER14250+SPC1520 (EVE)				—
ER14250-W (EVE)
ER14250/2PT (EVE)		на поддоне 50 шт
ER14250/3FP (EVE)		на поддоне 50 шт
ER14250/3PF (EVE)   ER14250/3PF (MINAMOTO)
ER14250/3PT (EVE)
ER14250/P (EVE)   ER14250/P (MINAMOTO)		на поддоне 30 шт
ER14250/S (EVE)		на поддоне 50 шт
ER14250/SPC1520 (EVE)				—
ER14250/T (EVE)
ER14250/W (EVE)
