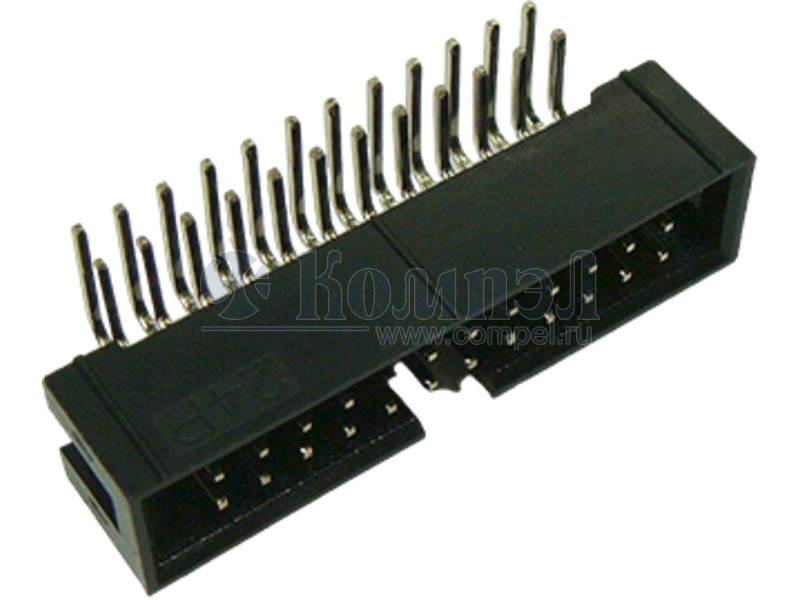

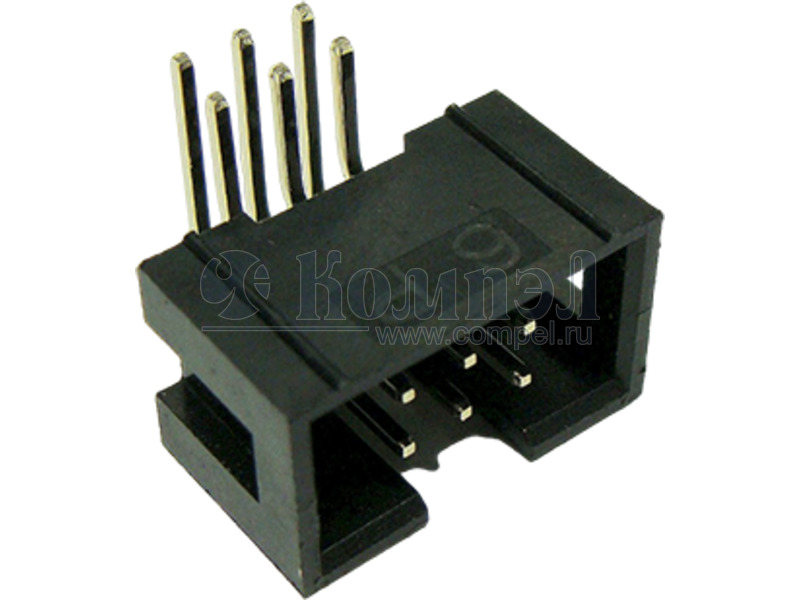

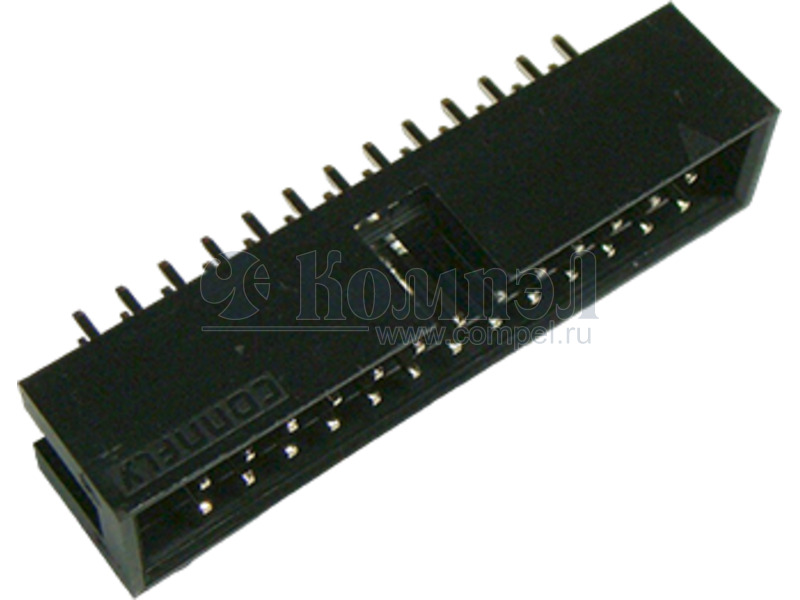

Серия соединителей провод - плата DS1013

Общие характеристики

	Раздел	Соединители провод - плата
	Тип разъема
	Расстояние между соседними контактами
	Рабочий ток контактов
	Рабочее напряжение контактов
	Количество рядов контактов
	Применение

Документация на серию DS1013

2.54 C 2.54 Ø1 .02 NOTES: 1. Electrical characteristics: 1.1 Contact resistance: 20mΩ Max. Initial. 1.2 Dielectric withstanding voltage: 500V AC(rms) for 1 minute. 1.3 Insulation resistance: 1000MΩ Min. 1.4 Current rating:3A. Recommend PCB Layout(Tolerance:±0.05) 2.9 2.54 2. Environment characteristics: Temperature range: -40°C~+105°C. 3. Product number code: E H 0.30 □0.64±0.05 3.0 2.54 13.8 2.54 9.0 Housing material 0: PBT UL94 V-0 9: PA-9T Plating level 3A: Level B: Level B XXP 9.1 9.1 V/T type R/A type DIM. H type(For elevator only) 1: 7.50 2: 9.50 9.1 Elevator type DIM. E type(For V/T only) 1: 3.10 2: 8.00 C±0.25 2.54±0.1 Dimension Position A B C 06 15.22 13.02 5.08 08 17.76 15.56 7.62 N: Level N Housing color U: Blue B: Black A: Gray W: White Contact plating Si: Full gold flash 10 20.30 18.10 10.16 B±0.2 12 22.84 20.64 12.70 30 45.70 43.50 35.56 A±0.3 14 25.38 23.18 15.24 34 50.78 48.58 40.64 16 27.92 25.72 17.78 40 58.40 56.20 48.26 20 33.00 30.80 22.86 50 71.10 68.90 60.96 24 38.08 35.88 27.94 60 83.80 81.60 73.66 26 40.62 38.42 30.48 64 88.88 86.68 78.74 Mounting type S: V/T type R: R/A type E: Elevator type No.of contacts 06 08 10 12 14 16 20 24 26 30 34 40 50 60 64 晨翔电子有限公司 (Series Image-Reference Only) CONNFLY ELECTRONIC CO. LTD

PDF

Документация на серию DS1013

DS1013

Дата модификации: 26.05.2021

Размер: 345.2 Кб

2 стр.

найти DS1013.pdf

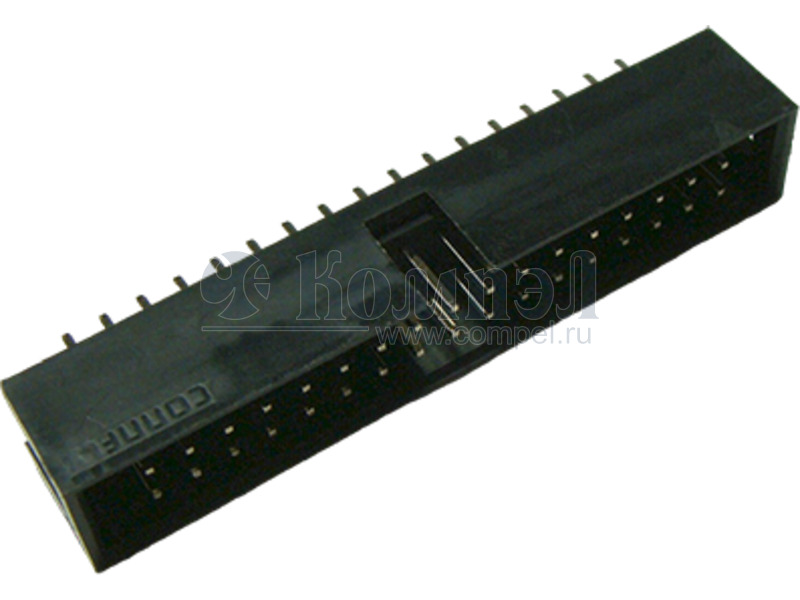

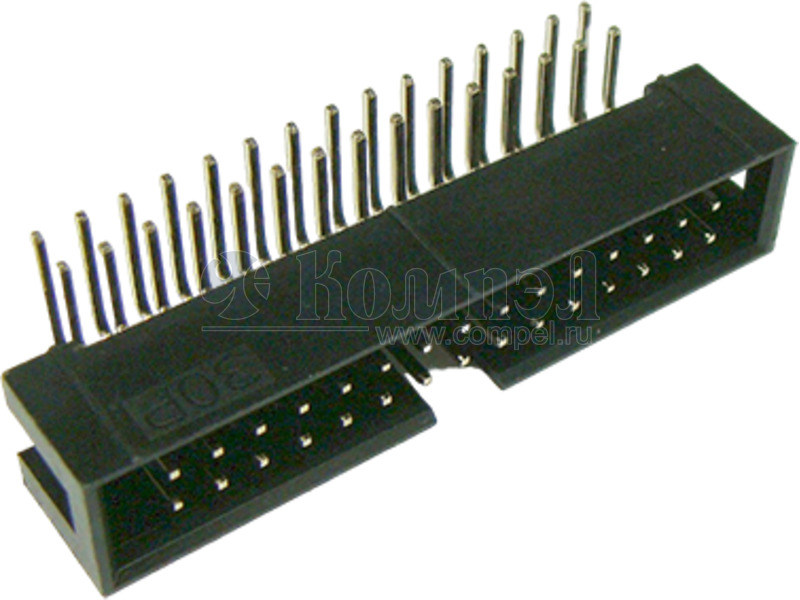

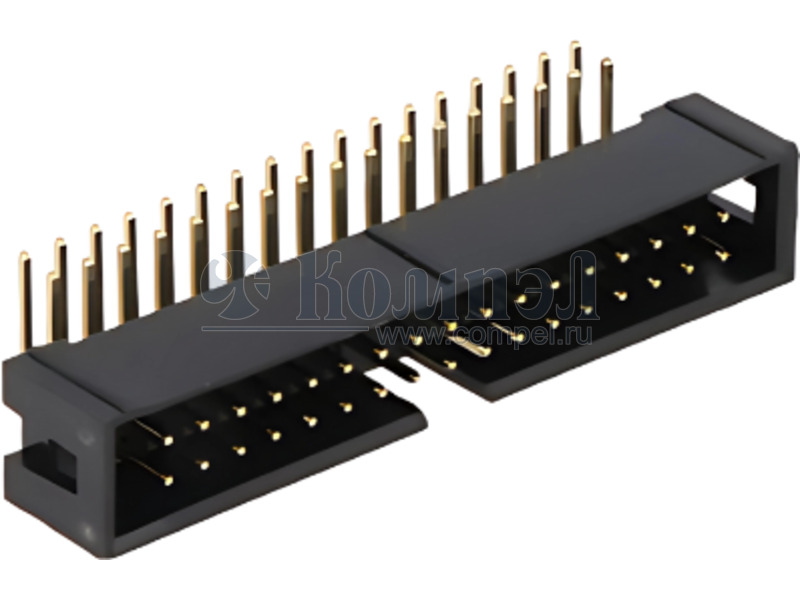

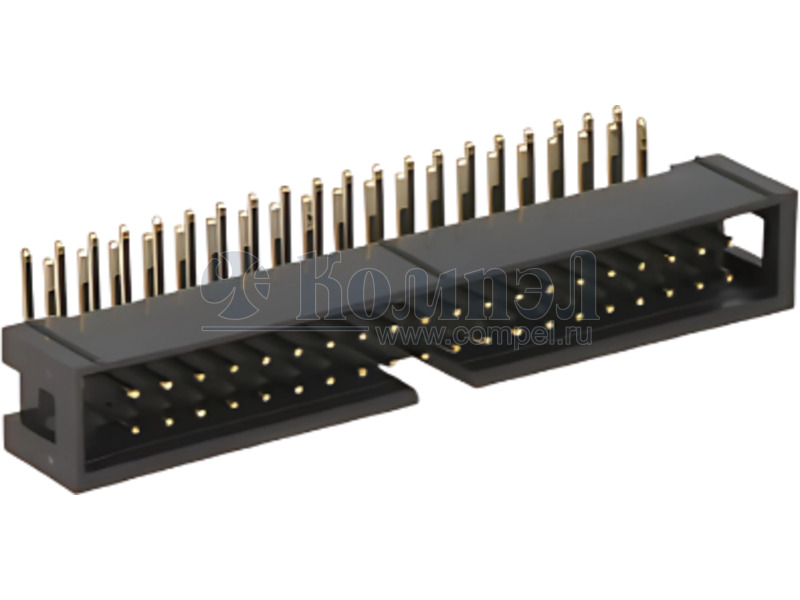

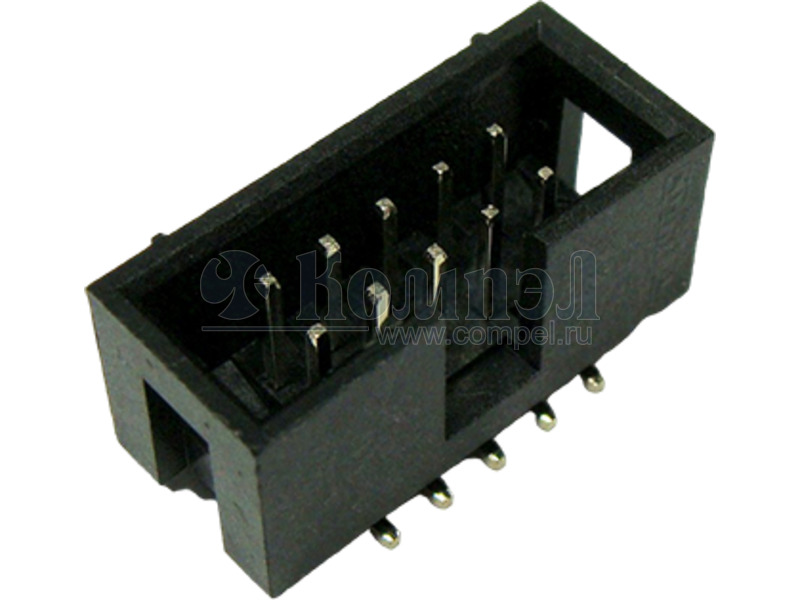

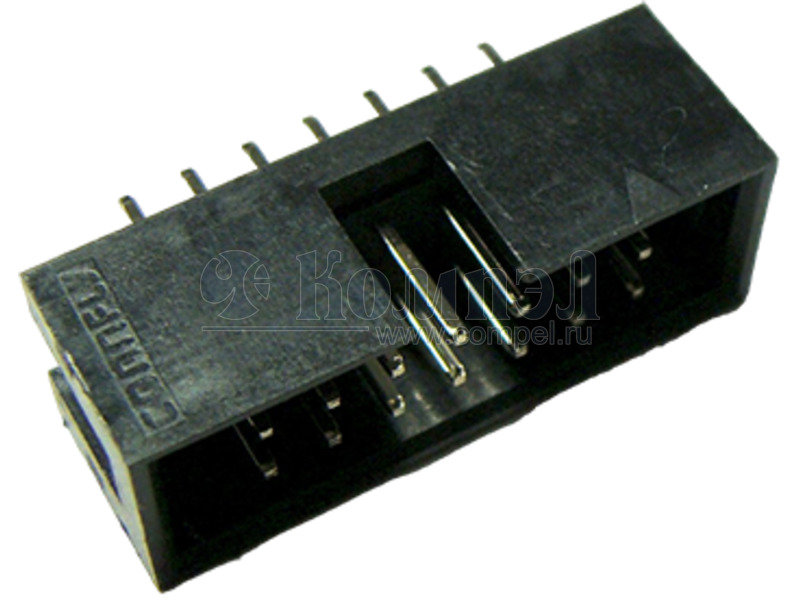

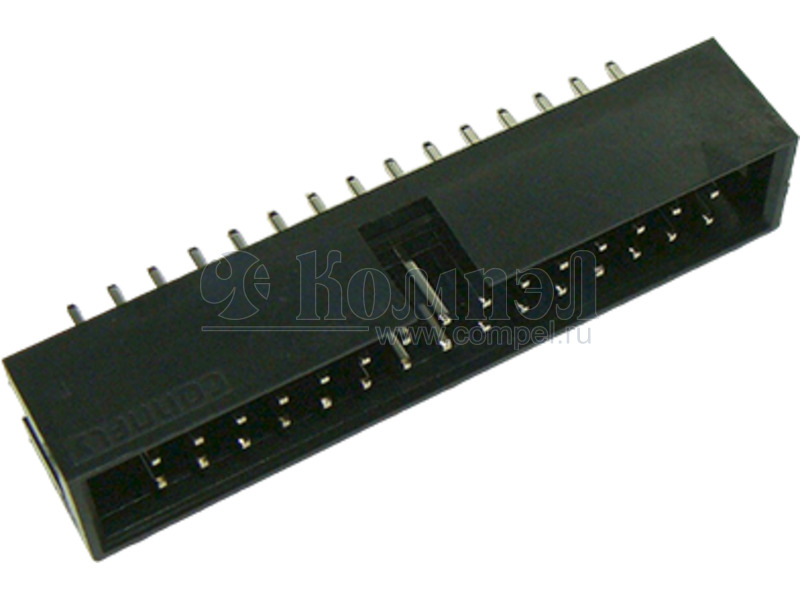

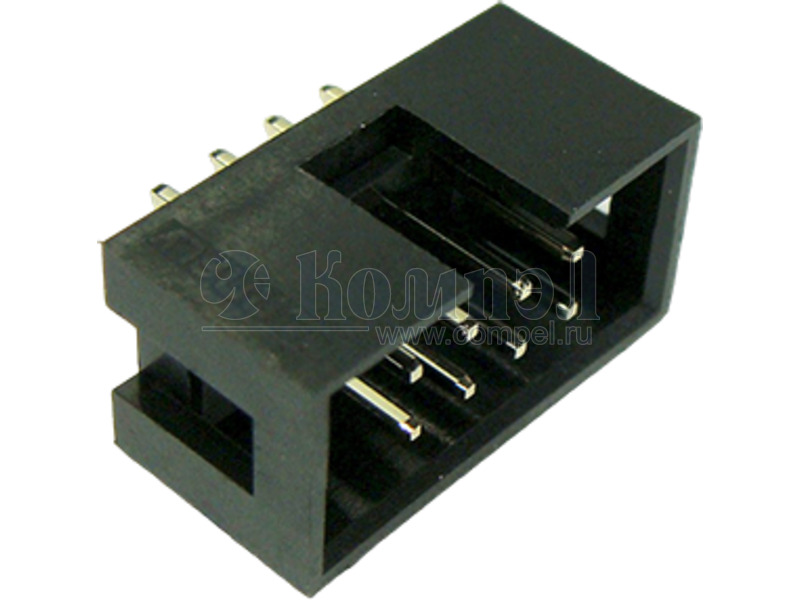

Товары серии DS1013

Наименование	Упаковка	Контакты	Монтаж	Расположение	Коммерческое наименование	Семейство
DS1013-06MSISR-B (Connfly)						—
DS1013-06RSIB-B-0 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-06RSIB-B-9 (CONNFLY)				—	—	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-06SSiB1-B-0 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-06SSIB1-B-9 (CONNFLY)					—	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-08MSISA-B (Connfly)	в линейках 3000 шт					—
DS1013-08MSISR-B (CONNFLY)						Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-08MSIXA-B (CONNFLY)						Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-08RSIB-B-0 (CONNFLY)	1 шт					Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-08RSIB-B-9 (CONNFLY)				—	—	Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-08SSIB1-B-0 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-08SSIB1-B-9 (CONNFLY)					—	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-10MSISA-B (Connfly)	в линейках 58 шт					—
DS1013-10MSISR-B (CONNFLY) BHS-10 (CONNFLY)	в ленте 350 шт	—	—	—	—	—
DS1013-10MSIXR-B (CONNFLY)						—
DS1013-10MSIXT-B (Connfly)						—
DS1013-10RSIB-B-0 (CONNFLY) BH-10R (CONNFLY)	на поддоне 260 шт	—	—	—	—	—
DS1013-10RSIB-B-9 (CONNFLY)				—	—	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-10SSIA1-B-0 (CONNFLY)	на поддоне 260 шт					Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator
DS1013-10SSiB1-B-0 (CONNFLY) BH-10 (CONNFLY)	на поддоне 260 шт	—	—	—	—	—
DS1013-10SSIB1-B-9 (CONNFLY)					—	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-10SSIB2-B-0 (CONNFLY)					—	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-12RSIB-B-0 (CONNFLY)	1 шт					Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-12RSIB-B-9 (CONNFLY)				—	—	Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-12RSIB1-B-0 (Connfly)						—
DS1013-12SSIB1-B-0 (CONNFLY) IDC-12M (CONNFLY)	1 шт	—	—	—	—	—
DS1013-12SSIB1-B-9 (CONNFLY)					—	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-14MSISR-B (CONNFLY)					—	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-14MSIXA-B (CONNFLY) BHS-14 (CONNFLY)	в линейках 1000 шт	—	—	—	—	—
DS1013-14MSIXT-B (Connfly)						—
DS1013-14RSIB-B-0 (CONNFLY)	на поддоне 200 шт	—	—	—	—	—
DS1013-14RSIB-B-9 (CONNFLY)				—	—	Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-14SSIB1-B-0 (CONNFLY) BH-14 (CONNFLY)	на поддоне 200 шт	—	—	—	—	—
DS1013-14SSIB1-B-9 (CONNFLY)					—	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-14SSIB2-B-0 (CONNFLY)					—	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-16MSISA-B (Connfly)						—
DS1013-16MSIXA-B (CONNFLY)	в линейках 21 шт				—	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-16MSIXT-B (Connfly)						—
DS1013-16RSIB-B-0 (CONNFLY)	на поддоне 180 шт	—	—	—	—	—
DS1013-16RSIB-B-9 (CONNFLY)				—	—	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-16SSIB1-B-0 (CONNFLY) BH-16 (CONNFLY)	на поддоне 180 шт	—	—	—	—	—
DS1013-16SSIB1-B-9 (CONNFLY)					—	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-20MSISR-B (Connfly)						Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-20MSIXA-B (CONNFLY)	в линейках 6 шт					Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-20MSIXT-B (Connfly)						—
DS1013-20RSIB-B-0 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-20RSIB-B-9 (CONNFLY)				—	—	Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-20SSIA1-B-0 (CONNFLY)						Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator
DS1013-20SSIB1-B-0 (CONNFLY) BH-20 (CONNFLY)	на поддоне 160 шт	—	—	—	—	—
DS1013-20SSIB1-B-9 (CONNFLY)	на поддоне 160 шт				—	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-24MSISR-B (CONNFLY)	1 шт					—
DS1013-24MSIXA-B (CONNFLY)					—	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-24RSIB-B-0 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-24RSIB-B-9 (CONNFLY)				—	—	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-24SSIB1-B-0 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-24SSIB1-B-9 (CONNFLY)					—	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-26MSISR-B (Connfly)						—
DS1013-26MSIXA-B (CONNFLY)					—	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-26RSIA-B-0 (CONNFLY)				—	—	Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator
DS1013-26RSIB-B-0 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-26RSIB-B-9 (CONNFLY)				—	—	Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-26SSIA1-B-0 (CONNFLY)					—	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator
DS1013-26SSIB1-B-0 (CONNFLY) BH-26 (CONNFLY)	на поддоне 2880 шт	—	—	—	—	—
DS1013-26SSIB1-B-9 (CONNFLY)					—	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-30MSISA-B (Connfly)						—
DS1013-30MSISR-B (Connfly)						Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-30MSIXA-B (CONNFLY)					—	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-30RSiB-B-0 (CONNFLY)	на поддоне 100 шт	—	—	—	—	—
DS1013-30RSIB-B-9 (CONNFLY)				—	—	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-30SSIA1-B-0 (CONNFLY)						—
DS1013-30SSIB1-B-0 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-30SSIB1-B-9 (CONNFLY)					—	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-34MSIXA-B (CONNFLY)					—	Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-34RSiB-B-0 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-34RSIB-B-9 (CONNFLY)				—	—	Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-34SSIB1-B-0 (CONNFLY) BH-34 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-34SSIB1-B-9 (CONNFLY)					—	Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-34SSIB2-B-0 (CONNFLY)					—	Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-40MSISA-B (CONNFLY)						—
DS1013-40MSIXA-B (CONNFLY)					—	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-40RSIB-B-0 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-40RSIB-B-9 (CONNFLY)				—	—	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-40SSIB1-B-0 (CONNFLY) BH-40 (CONNFLY)	на поддоне 80 шт	—	—	—	—	—
DS1013-40SSIB1-B-9 (CONNFLY)					—	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-50MSISR-B (CONNFLY)					—	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-50MSIXA-B (CONNFLY)					—	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking
DS1013-50RSIB-B-0 (CONNFLY) BH-50R (CONNFLY)		—	—	—	—	—
DS1013-50RSIB-B-9 (CONNFLY)				—	—	Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-50SSIB1-B-0 (CONNFLY)	1 шт	—	—	—	—	—
DS1013-50SSIB1-B-9 (CONNFLY)					—	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
DS1013-60RSiB-B-0 (CONNFLY)	на поддоне 60 шт	—	—	—	—	—
DS1013-60SSiB1-B-0 (CONNFLY)	1 шт	—	—	—	—	—
